SG-11P Panel for SG Series Enclosures
Product Overview

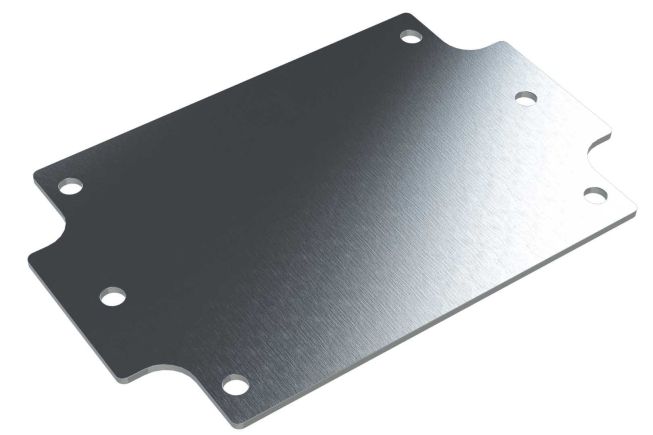

The SG-11P internal aluminum mounting panel, featuring a natural finish, is designed to fasten to the mounting bosses inside the base of the SG-11 and SG-18 enclosures. NOTE: the panel mounting screws are not included with the purchase of the panel, but instead, are provided with the purchase of the compatible enclosure.
Specifications for
SG-11P
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 4.4 x 2.8 x 0.0 in 113 x 73 x 2 mm |
| Weight | 0.07 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Panel | Aluminum |
General
| Series | |
| Color | Metallic |
| Country of Origin |  United States |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 to 3 weeks |
Assembly Details
| Components Include Hover me Most components require assembly upon delivery. | Panel only (assembly screws included with purchase of enclosure) |
Inventory for
SG-11P
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 52 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 to 3 weeks |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | SG-11P STEP |
| 2D Drawing DWG | SG-11P DWG |
| 2D Drawing PDF | SG-11P PDF |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Aluminum Panels |
