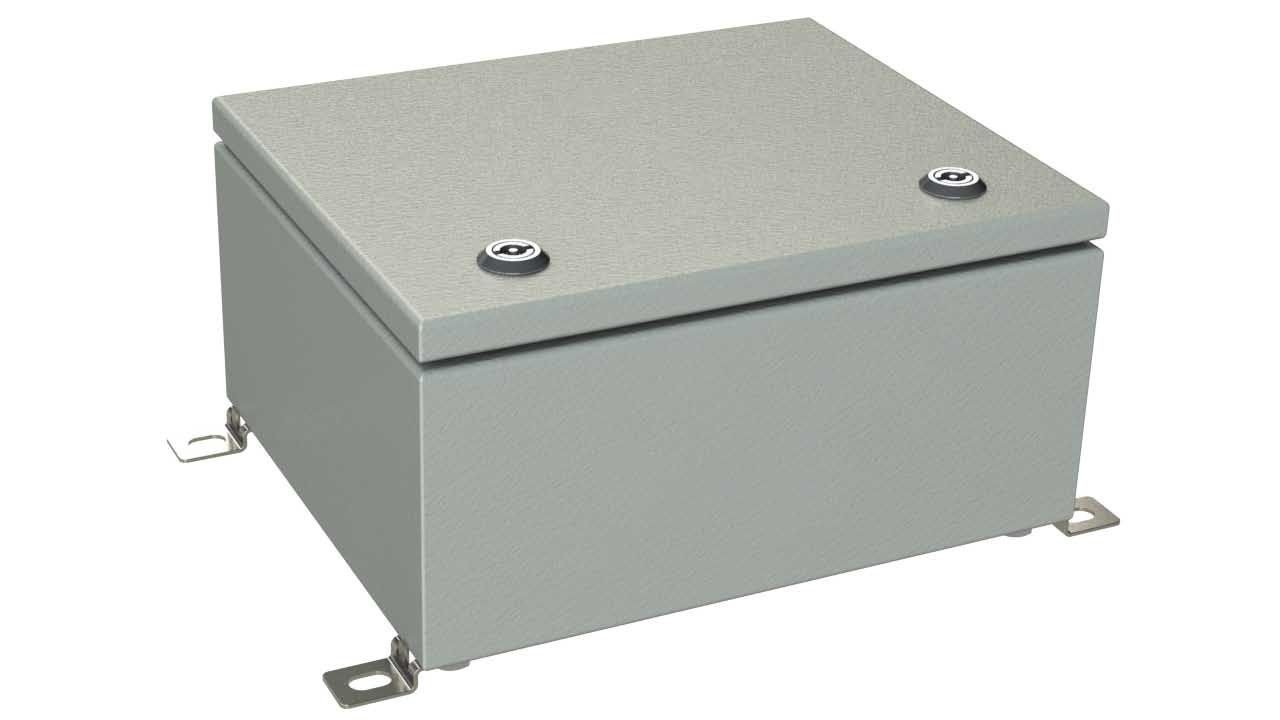

SB-31 SB Series NEMA Steel Enclosures

11.81 x 9.84 x 5.91 in. / 299.97 x 249.94 x 150.11 mm. / 9.00 lbs

  • 16 gauge steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12 (File No. E194432)
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Hinged door with keyed quarter turn latch
  • Gray powder coated finish
  • Bonding studs for grounding are provided on base and door
  • Weatherproof
  • Internal panel, external mounting brackets, and hardware included
  • Cable gland and venting accessories can be found here
  • Paint touch up kit available: SB-90 paint kit

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Gray Powder Coat
    SB-31-02 Steel Yes Yes
    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4$66.75
    5 to 9$55.40
    10 to 24$51.52
    25 to 49$44.31
    50+$43.42
