SA-32 Stainless Steel Electrical Box

Name: SA-32
SKU: SA-32-01
Price: 321.25 USD

Industrial grade stainless steel enclosure for electrical applications

Skip to the end of the images gallery

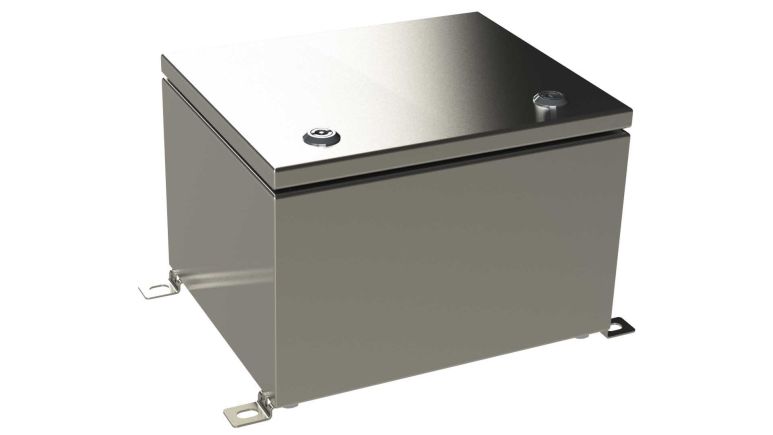

SA-32-01 Natural stainless steel hinged electrical enclosure - 11.81 x 9.84 x 7.87 inches

Skip to the beginning of the images gallery

SA Series

Part

SA-32-01

External Dimensions 11.81 x 9.84 x 7.87 in

In stock

Color Natural

Qty	Price / Unit
1 - 4	$321.25
5 - 9	$308.41
10 - 24	$296.07
25 - 49	$287.19
50+	$281.45

Part

SA-32-01

Qty:

Increase Down Increase Up

Product Overview

The SA-32 gasketed enclosure is crafted from 304 stainless steel, and is rated up to NEMA 4X, meeting the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.

Specifications for

SA-32-01

Dimensions

External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.	11.81 x 9.84 x 7.87 in
External Dimensions (mm)	300 x 250 x 200 mm
Internal Dimensions (in) Hover me Nominal internal dimensions (LxWxH). Features (screw towers, mounting bosses, corner radii, wall draft, etc.) may impact the overall dimensions. Refer to drawings/models for exact dimensional details.	11.69 x 9.72 x 7.76 in
Internal Dimensions (mm)	297 x 247 x 197 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.	0.06 in
Weight	13.28 lbs
2d Drawing PDF	Download 2D Drawing PDF

Material Details

Steel Gauge	16
Base	Stainless steel
Cover	Stainless steel
Gasket	Formed-in-place polyurethane

Application

Application	Outdoor use
Waterproof	Yes

General

Series	SA Series
Color	Natural
Country of Origin	China

Assembly Details

Assembly Includes Hover me Most components require assembly upon delivery.	Gasketed enclosure, internal panel, external mounting feet, and hardware
External Mounting Style	Surface mounting kit (included)
Internal Mounting Option	PCB mounting bosses in base, Internal mounting panel (included)

Ratings

NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.	1, 2, 4, 4X, 12, 13
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.	IP65, IP66

Downloads

Models & Drawings

3D Model	SA-32 STEP
2D Drawing DWG	SA-32 DWG
2D Drawing PDF	SA-32 PDF
Other Files	SA-32 Pole Mount Kit Assembly

Accessory Guide

Optional Accessories

Pole Mounting Kit (Installed Along Width)	PK-125
Pole Mounting Kit (Installed Along Length)	PK-163
Cable Management & Venting Accessories	Cable Glands & Vents

Spare Parts

Spare Key for Latch

SB-KEY-01
