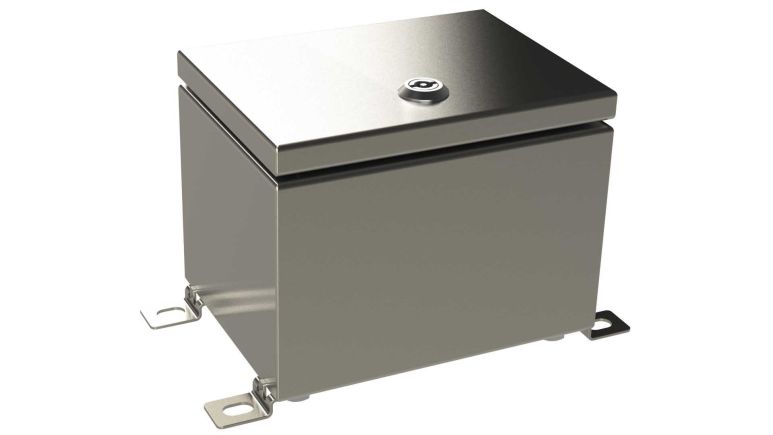

SA-38 SA Series NEMA Stainless Steel Enclosures

7.87 x 5.91 x 5.91 in. / 199.90 x 150.11 x 150.11 mm. / 5.20 lbs

  • 304 stainless steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Keyed quarter turn latch on hinged door
  • Bonding studs for grounding on door and base
  • Waterproof and corrosion-resistant
  • Internal panel, external mounting brackets, and hardware included
  • Cable gland and venting accessories are available here
  • This item is non-returnable

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Stainless Steel
    SA-38-01 Stainless steel Yes Yes
    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4 $112.89
    5 to 9$107.25
    10 to 24$105.10
    25 to 49$94.59
    50 to 99$92.70
