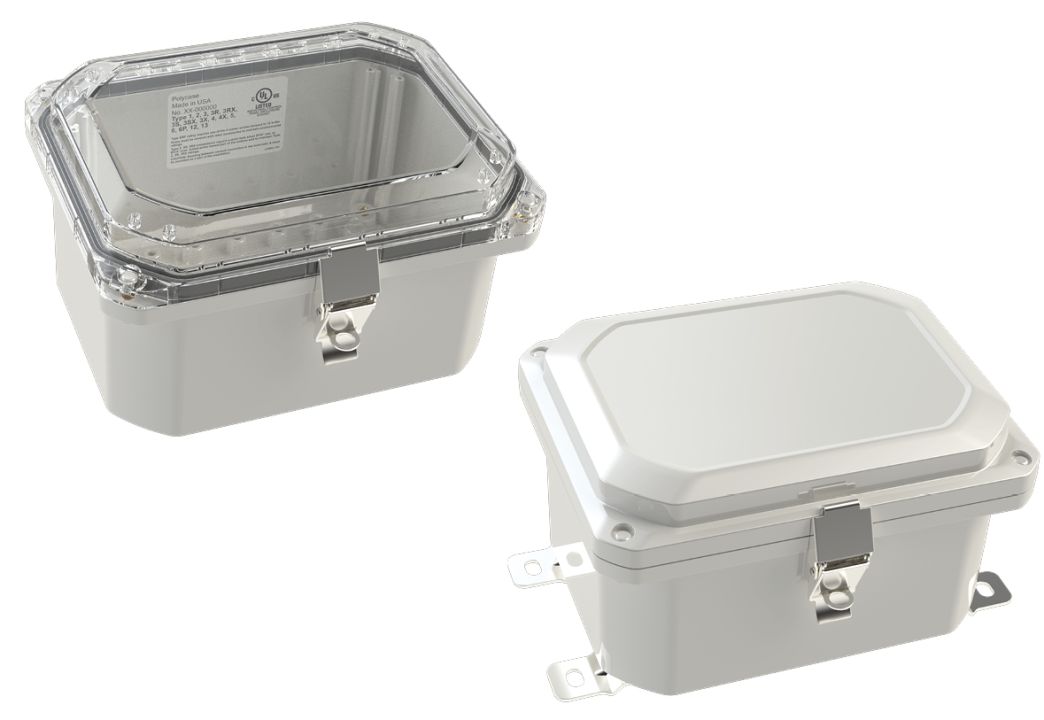

The ZH-080604 hinged enclosure is constructed from a gray polycarbonate base with the option of a clear, or gray polycarbonate cover. Designed for versatility, the enclosure provides three different cover assembly styles: a stainless steel latch for quick access (includes area for padlock), a screw close option, or screw close with tamper-resistant screws for enhanced security. Regardless of which cover assembly you choose, a continuous gasket can be found in the cover, accompanied by a thick and tall rib that ensures a watertight seal without any parting line, reducing sharp edges that may compromise the gasket. Select from 4 different external mounting styles: a plastic multi-directional foot kit, plastic mounting flanges, a stainless steel foot kit, or no external mounting for when you have your own mounting solution. Secure your internal components effortlessly by utilizing the mounting bosses located in both the base and cover, offering flexibility precisely where you need it. Ideal for outdoor IoT applications, the housing is rated up to NEMA 4X/IP66, providing superior protection in harsh indoor or outdoor environments. Opting for the screw close configuration elevates its protection further, achieving NEMA 6/6P and IP67/IP68 for applications where the enclosure may be submerged.
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 8.4 x 6.4 x 5.2 in 213 x 163 x 133 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 7.7 x 5.7 x 4.8 in 197 x 146 x 124 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | |
| DIN Rail Length (mm) | |
| Weight | 2.37 lbs |
| Screw Size | |
| Fan Size | |
| Fits Hole Size | |
| Mounting Thread | |
| Cable Diameter (in) | |
| Clearance Hole Diameter (in) | |
| Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied. | |
| Metric Knockouts | |
| Padlock Hasp Diameter | |
| 2d Drawing PDF | Download 2D Drawing PDF |
| Download Material Specs | Download Material Specs |
| Product Material | |
| Base | |
| Cover | |
| Panel | |
| End Panel | |
| End Cap | |
| Latch | |
| Gasket | |
| Mounting Flange | |
| Mounting Feet | |
| Body | |
| Nut | |
| Din Clip | |
| DIN Rail | |
| Washer | |
| Temp. Range Impact / Vibration | |
| Temp. Range Static | |
| Mounting Channel | |
| Hose Clamp | |
| Button Keypad | |
| Battery Door | |
| Assembly Screws |
| Indoor/Outdoor Use | |
| UV Resistant | |
| Waterproof | |
| EMI/RFI Attenuation |
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | |
| Ready To Ship in 2-3 Days |
| Ready To Ship in One Week | |
| Ready To Ship in 4 Weeks | |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | |
| Returnable |
Inventory is subject to change. In-stock orders placed before 3PM ET (Monday-Friday) typically ship the same day. We will contact you if your order is delayed.
| 3D Model | ZH-080604 STEP |
| 3D Model | ZH-080604 3D |
| 2D Drawing PDF | ZH-080604 PDF |
| 2D Drawing DWG | ZH-080604 DWG |
| Other Files | ZH-080604 Printing Template |
| Enclosure Material Specs | Polycarbonate Material Spec |
| Screw Torque Guide | Screw Torque |
| ZH & ZQ Series UL Certificate | UL Certificate & Testing Results |
| USMCA Certificate of Origin | USMCA Polycase Products |
| Internal Mounting Panels | ZX-0806K |
| DIN Rail Kit (Installed Along Width) | DR-52 |
| DIN Rail Kit (Installed Along Length) | DR-54 |
| Pole Mount Kit (Installed Along Width) | PK-067A |
| Pole Mount Kit (Installed Along Length) | PK-087A |
| Cable Management & Venting Accessories | Cable Glands & Vents |
| Standard Cover Screws | SCREWS-046 |
| Tamper-Resistant Cover Screws | SCREWS-047-25 |
| 6" Flange Kit | ZH-06FK-01 |
| Plastic Mounting Feet | ZH-01FK-01 |
| Stainless Steel Mounting Feet | ZH-91FK-01 |
| Stainless Steel Latch | ZH-01L |
| Cover Screw Hole Plug | ZH-95P |
| Gasket for Cover | ZH-0806G |
| PCB Screws for Corner Bosses with Brass Inserts | SCREWS-011-100 |
| PCB Screws for Plastic Bosses | SCREWS-013-100 |
| PCB Screws for Top of Base & Cover Bosses | SCREWS-MBR-100 |
| Color | Clear Cover | Cover Assembly | External Mounting Style | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part # | Gray | No | Yes | Stainless steel latch | Screw close | Screw close - tamper-resistant | Plastic flange | Plastic feet | None | Stainless steel feet |
| ZH-080604-02 | ||||||||||
| ZH-080604-01 | ||||||||||
| ZH-080604-04 | ||||||||||
| ZH-080604-03 | ||||||||||
| ZH-080604-34 | ||||||||||
| ZH-080604-33 | ||||||||||
| ZH-080604-06 | ||||||||||
| ZH-080604-05 | ||||||||||
| ZH-080604-08 | ||||||||||
| ZH-080604-07 | ||||||||||
| ZH-080604-38 | ||||||||||
| ZH-080604-37 | ||||||||||
| ZH-080604-90 | ||||||||||
| ZH-080604-91 | ||||||||||
| ZH-080604-92 | ||||||||||
| ZH-080604-93 | ||||||||||
| ZH-080604-94 | ||||||||||
| ZH-080604-95 | ||||||||||
| ZH-080604-40 | ||||||||||
| ZH-080604-41 | ||||||||||
| ZH-080604-42 | ||||||||||
| ZH-080604-43 | ||||||||||
| ZH-080604-44 | ||||||||||
| ZH-080604-45 | ||||||||||
New
New | Customer Rating |
| Price |
| External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
| Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
| Country of Origin |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. |
| NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer. |
| IP Equivalent Hover me Polycase IP Code equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org or information available from the manufacturer. |
| Color |
| Material |
| Application |
| Mounting Style |
| Internal Mounting Option |
| Features |
As low as $40.62 per unit |
8.4 x 6.4 x 5.2 in |
7.7 x 5.7 x 4.8 in |
 United States |
1 week |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
As low as $38.50 per unit |
8.4 x 6.4 x 5.2 in |
7.7 x 5.7 x 4.8 in |
| United States |
1 week |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
As low as $46.93 per unit |
8.4 x 8.4 x 5.2 in |
7.7 x 7.7 x 4.8 in |
| United States |
1 to 3 weeks |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
As low as $37.74 per unit |
6.4 x 6.4 x 5.2 in |
5.7 x 5.7 x 4.8 in |
| United States |
1 week |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
As low as $45.02 per unit |
10 x 8.4 x 3.7 in |
9.7 x 7.5 x 3.3 in |
| United States |
1 to 3 weeks |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
As low as $33.76 per unit |
8.2 x 8.2 x 5.1 in |
7.0 x 7.0 x 4.8 in |
South Korea |
Up to 20 weeks |
Gray |
Polycarbonate |
Outdoor use |
|
|
|
