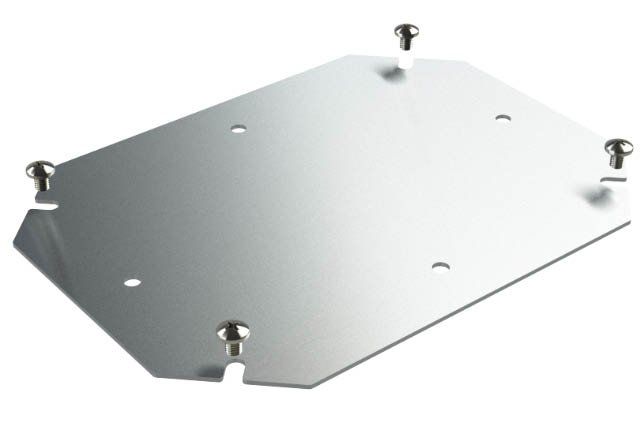

ZX-0806K Internal Mounting Panels
7.75 x 5.75 x 0.06 in / 196.85 x 146.05 x 1.52 mm. / 0.99 lbs
View Details
In stock
- Aluminum internal mounting panel for ZH-080604 and ZQ-080604 enclosures
- 4 different panel kits available
- Standard panel kit - Part # ZX-0806K-01
- Mounts to 4 standard mounting bosses in the bottom of the base of the enclosure
- Kit includes 1 standard panel and 4 screws
- Hinged panel kit - Part # ZX-0806K-02
- Allows panel to be assembled at any depth within the base and swing open for easy access to internal components
- Includes 1 specially cut panel which allows it to swing open, suspension kit and hardware
- Top of base or cover panel kit - Part # ZX-0806K-03
- Same kit can be used to mount a panel in the cover or at the top of the base of the enclosure
- Kit includes panel and screws for the cover or top of base mounting bosses
- Suspension panel kit - Part # ZX-0806K-04
- Allows panel to be suspended at any depth within the base
- Includes a standard panel, suspension kit and hardware
| Panel Mounting Kit Type | ||||
|---|---|---|---|---|
| Part # | Standard | Hinged | Top of Base or Cover | Suspension |
| ZX-0806K-01 | ||||
| ZX-0806K-02 | ||||
| ZX-0806K-03 | ||||
| ZX-0806K-04 | ||||
Models, Drawings, Material Specs and Other Files
3D Model
ZX-0806K STEP
2D Drawing
ZX-0806K DWG
2D Drawing
ZX-0806K PDF
Other Files
ZX-0806K-02 & ZX-0806K-04 Assembly Instructions
