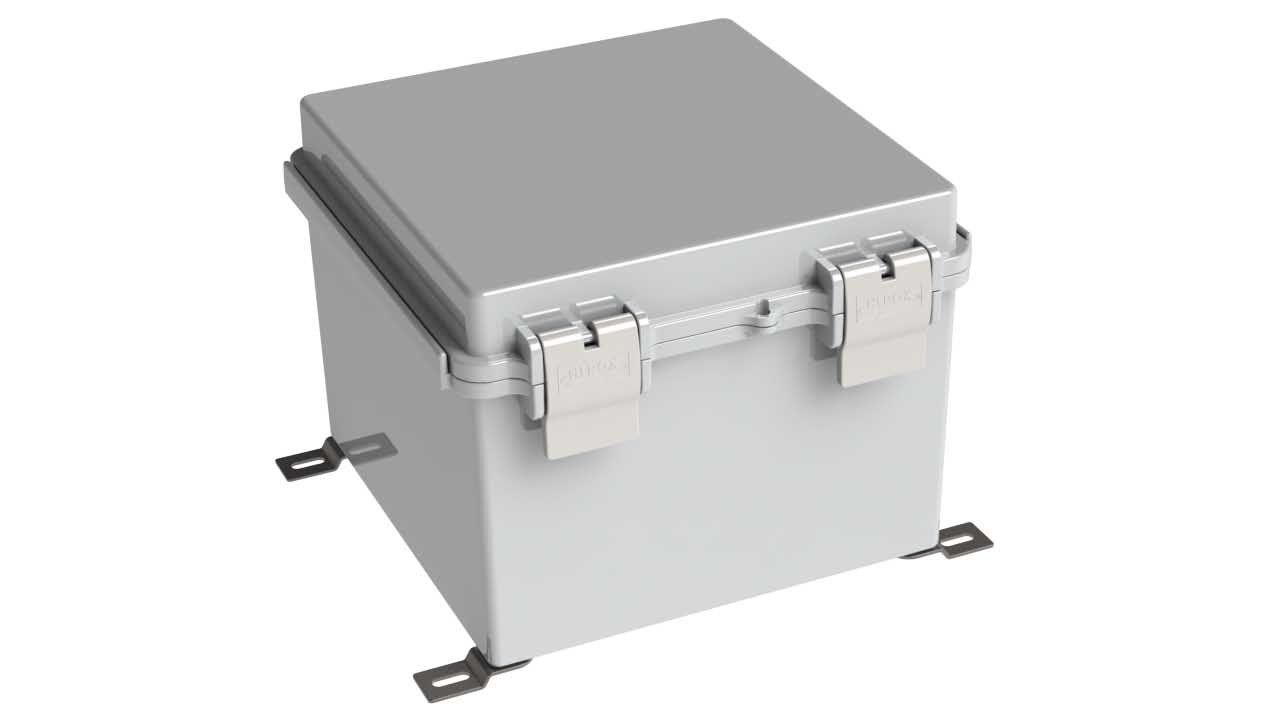

WH-14 Hinged NEMA Enclosure

7.71 x 7.71 x 5.90 in / 195.83 x 195.83 x 149.86 mm
View Details
In stock
Unit Price $27.42
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • Designed to IP66 of IEC 529 and NEMA 1, 2, 4, and 4X specifications
  • Outdoor versions are UL Listed to UL#E194432
  • Waterproof gasket makes enclosure ideal for use in a wide range of adverse conditions
  • All-plastic design including hinge pins and latches and molded-in padlocking feature
  • Includes stainless steel wall mounting hardware
  • 4 PCB mounting bosses in base
RatingIndoorOutdoor - Gray CoverOutdoor - Clear Cover
Flame ratingUL94 HBUL94 5VAUL94 V-0
NEMA Rating1, 2, 4, 4X1, 2, 4, 4X1, 2, 4, 4X
IP RatingIP65, IP66IP65, IP66IP65, IP66
*WH-14-01 (indoor version) flame rating = UL94-HB, *WH-14-02 (outdoor with gray cover version) flame rating = UL94-5VA, *WH-14-03 (outdoor with clear cover version) flame rating = UL94V-0
Part #IndoorOutdoorGrayGray with Clear Cover

Optional Accessories Include:

  • Internal mounting panel and screws - WH-14K
  • Pole mounting kit installed along width or length - PK-083
  • DIN Rail kit installed along width or length - DR-12
  • Cable glands, seals, plugs and venting accessories - Cable Management and Venting

Models, Drawings, Material Specs and Other Files

3D Model WH-14 STEP
2D Drawing WH-14 DWG
2D Drawing WH-14 PDF
Material Spec WH Material Specs
