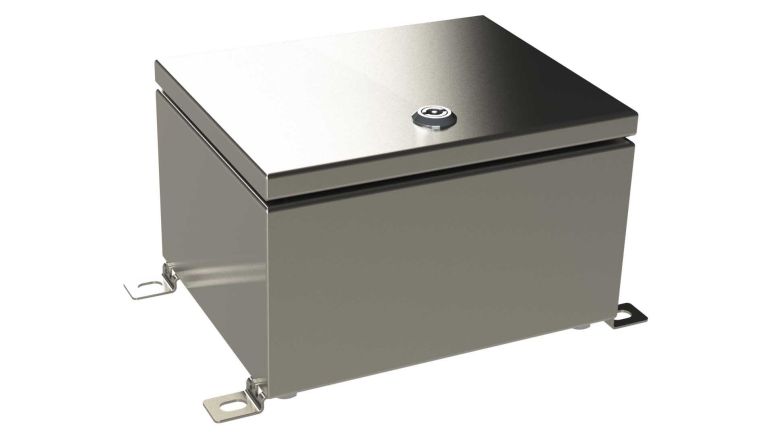

SA-30 NEMA Stainless Steel Enclosure
Stainless steel NEMA enclosure with hinged cover
Product Overview
The SA-30 gasketed enclosure is crafted from 304 stainless steel, and is rated up to NEMA 4X, meeting the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.
Specifications for
SA-30-01
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
9.8 x 7.8 x 5.9 in
250 x 200 x 150 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
9.5 x 7.5 x 5.7 in
242 x 192 x 147 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.06 in |
| Weight | 8.75 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Steel Gauge | 16 |
| Base | Stainless steel |
| Cover | Stainless steel |
| Gasket | Formed-in-place polyurethane |
Application
| Indoor/Outdoor Use | Outdoor use |
| Waterproof | Yes |
Inventory for
SA-30-01
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 9 |
| Ready To Ship in 2 Weeks | 141 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 2 to 16 weeks |
| Returnable | No |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times! You can also view all USA-made items with shorter lead times here: Manufactured in the USA.
Downloads
Models & Drawings
| 3D Model | SA-30 STEP |
| 2D Drawing DWG | SA-30 DWG |
| 2D Drawing PDF | SA-30 PDF |
| Other Files | SA-30 Pole Mount Kit Assembly |
Certifications & Testing
| USMCA Certificate of Origin | USMCA SA/SB Series |
Accessory Guide
Optional Accessories
| Pole Mounting Kit (Installed Along Width) | PK-086 |
| Pole Mounting Kit (Installed Along Length) | PK-163 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
Spare Parts
| Spare Key for Latch | SB-KEY-01 |
