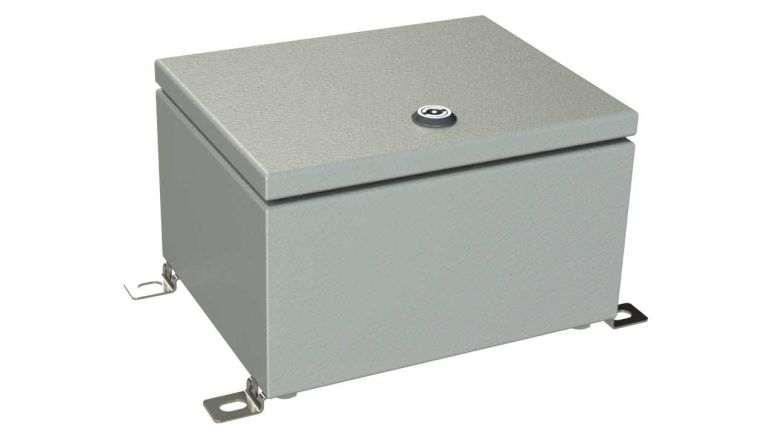

SB-30 NEMA Steel Enclosure
16 Gauge steel enclosure with hinged cover
Product Overview
The SB-30 gasketed enclosure is crafted from 16 gauge steel that is powder coated with a gray finish to provide corrosion resistance. Rated up to NEMA 4X, the enclosure meets the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.
Specifications for
SB-30-02
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 9.84 x 7.87 x 5.91 in 250 x 200 x 150 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 9.51 x 7.54 x 5.79 in 242 x 192 x 147 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.06 in |
| Weight | 8.40 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Steel Gauge | 16 |
| Base | Carbon steel |
| Cover | Carbon steel |
| Gasket | Formed-in-place polyurethane |
Application
| Application | Outdoor use |
| Waterproof | Yes |
Downloads
Models & Drawings
| 3D Model | SB-30 STEP |
| 2D Drawing DWG | SB-30 DWG |
| 2D Drawing PDF | SB-30 PDF |
| Other Files | SB-30 Pole Mount Kit Assembly |
Accessory Guide
Optional Accessories
| Pole Mounting Kit (Installed Along Width) | PK-086 |
| Pole Mounting Kit (Installed Along Length) | PK-163 |
| Cable Management & Venting Accessories | Cable Glands & Vents |
Spare Parts
| Spare Key for Latch | SB-KEY-01 |
Frequently Bought Together
PK-163 Pole Mount KitAs low as $60.78
PK-086 Pole Mount KitAs low as $50.40
CG3 Gray Cable GlandsAs low as $1.12
CG1 Black Cable GlandsAs low as $1.40
Compare with Similar Items
| Customer Rating |
| External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
| Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
| Country of Origin |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. |
| Color |
| Material |
| Application |
| NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer. |
| IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org. |
| Mounting Style |
| Internal Mounting Option |
| Features |
9.84 x 7.87 x 5.91 in |
9.51 x 7.54 x 5.79 in |
China |
2-16 weeks |
Gray |
Steel |
Outdoor use |
|
|
|
9.84 x 7.87 x 5.91 in |
9.51 x 7.54 x 5.79 in |
China |
2-16 weeks |
Natural |
Stainless Steel |
Outdoor use |
|
|
|
9.84 x 9.84 x 5.91 in |
9.51 x 9.51 x 5.79 in |
China |
2-16 weeks |
Gray |
Steel |
Outdoor use |
|
|
|
10.40 x 8.40 x 5.22 in |
9.75 x 7.50 x 4.89 in |
United States |
1-3 weeks |
Gray or Gray with Clear Cover |
Polycarbonate |
Outdoor use |
|
|
|
