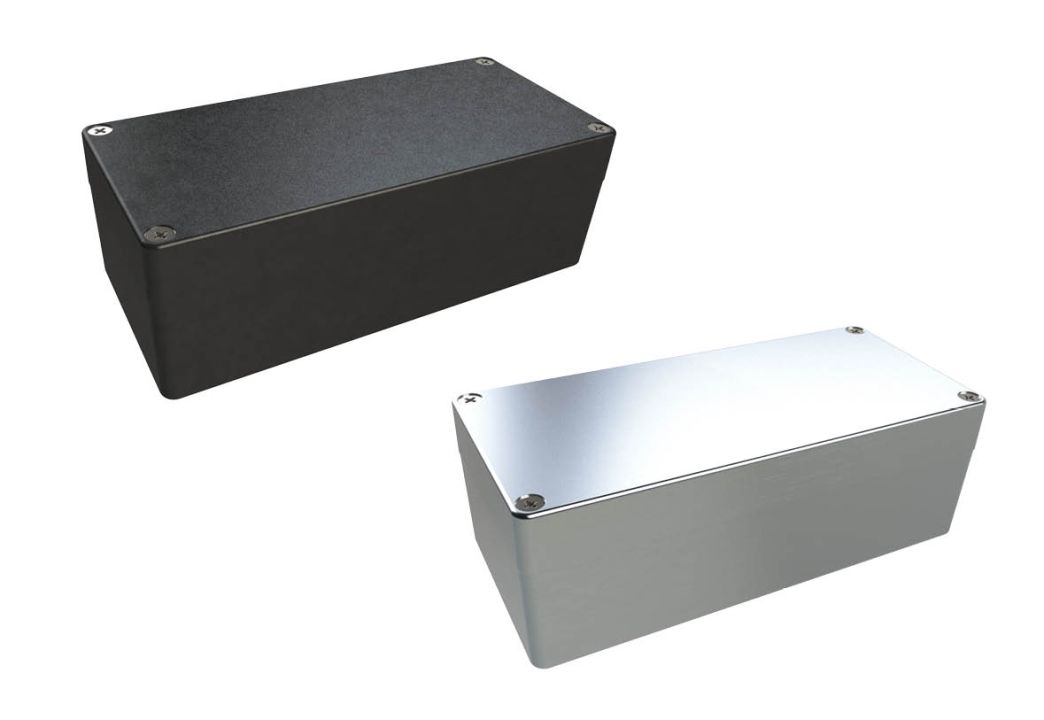

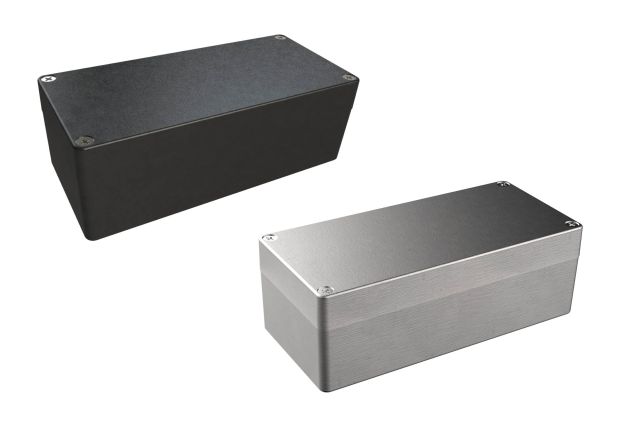

AN-21P AN Series Diecast Aluminum NEMA Enclosures

6.89 x 3.15 x 2.36 in. / 175.01 x 80.01 x 59.94 mm. / 1.02 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 & IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Captive, stainless steel screws thread through cover into base
  • Natural or black (powder coated) finish
  • Optional AN-21K panel and AN-90 mounting kit available

Material Specifications

Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-21P-01 Die Cast Aluminum Yes   Yes
AN-21P-02 Die Cast Aluminum   Yes Yes
Options & Pricing
IP Rating
NEMA Rating
