| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 7.3 x 4.7 x 2.2 in 188 x 119 x 56 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 7.0 x 4.3 x 2.0 in 178 x 109 x 52 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 1.04 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
| Download Material Specs | Download Material Specs |
| Base | Aluminum |
| Cover | Aluminum |
| Assembly Screws | Steel |
| Indoor/Outdoor Use | Indoor use |
| Waterproof | No |
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days |
| Ready To Ship in 4 Weeks | 1024 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | Up to 20 weeks |
Inventory is subject to change. In-stock orders placed before 3PM ET (Monday-Friday) typically ship the same day. We will contact you if your order is delayed.
To see comparable options, click the compare icon or contact us for assistance.
| 3D Model | AL-47P STEP |
| 2D Drawing DWG | AL-47P DWG |
| 2D Drawing PDF | AL-47P PDF |
| Other Files | AL-47P Printing Template |
| Aluminum Material Specs | Aluminum Specs |
| Screw Torque Guide | Screw Torque |
| USMCA Certificate of Origin | USMCA AL/AN/EX Series |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
New | Customer Rating |
| External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
| Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
| Country of Origin |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. |
| NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer. |
| IP Equivalent Hover me Polycase IP Code equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org or information available from the manufacturer. |
| Color |
| Material |
| Application |
| Mounting Style |
| Internal Mounting Option |
| Features |
7.3 x 4.7 x 2.2 in |
7.0 x 4.3 x 2.0 in |
Taiwan |
Up to 20 weeks |
N/A |
N/A |
Natural |
Aluminum |
Indoor use |
|
|
|
7.6 x 4.6 x 2.2 in |
7.3 x 4.3 x 2.1 in |
 United States |
1 week |
N/A |
N/A |
Black or Gray |
ABS |
Indoor use |
|
|
|
7.8 x 4.7 x 2.9 in |
7.4 x 4.2 x 2.8 in |
Taiwan |
Up to 20 weeks |
Natural or Black |
Aluminum |
Outdoor use |
|
|
|
7.2 x 5.0 x 2.2 in |
6.9 x 4.7 x 2.0 in |
| United States |
1 week |
N/A |
N/A |
Black |
ABS |
Indoor use |
|
|
|

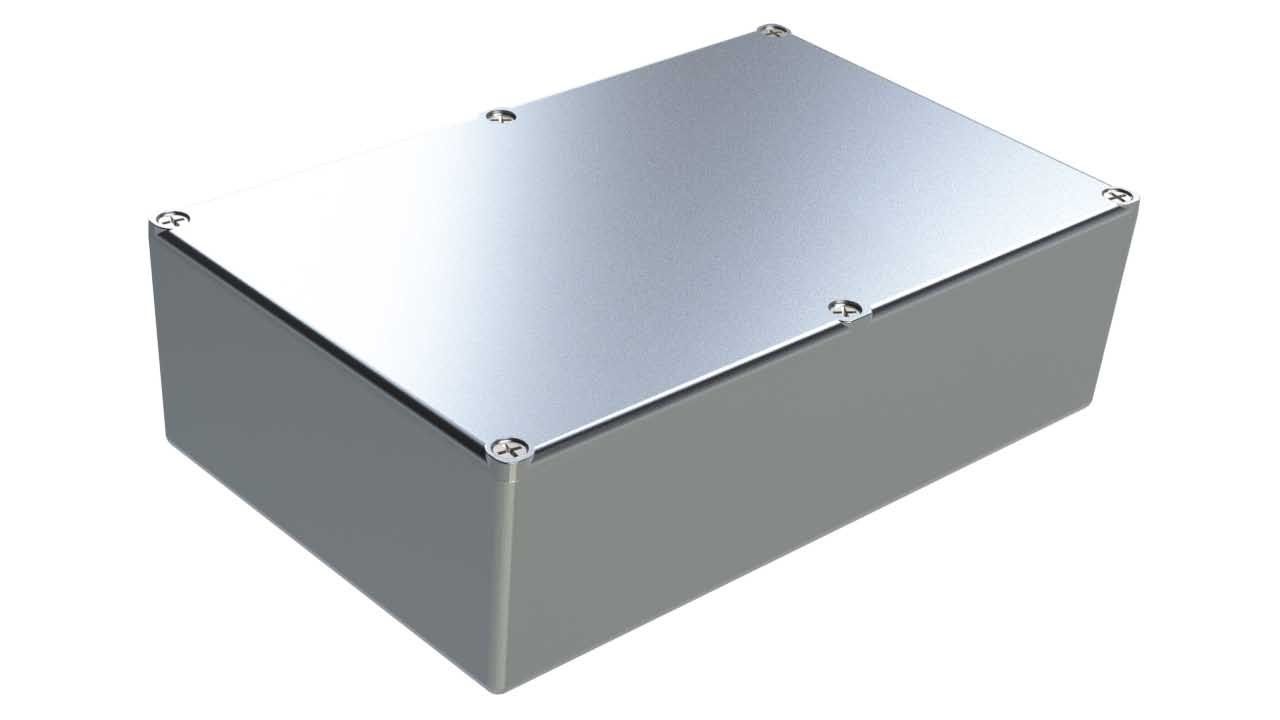

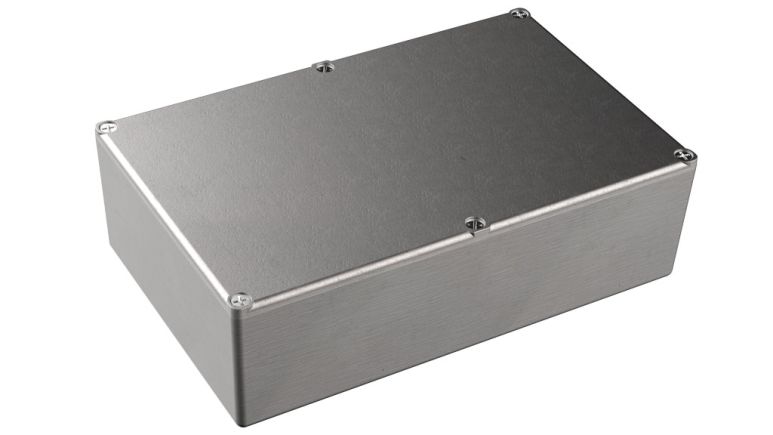

The AL series enclosures are made from diecast aluminum and are designed for indoor potting applications. CNC machining and graphics services available on this series.
Polycase’s extruded aluminum enclosures are designed for compatibility with a wide variety of electronic applications including desktop, instrument, and more.
Our diecast aluminum enclosures are ideal for housing sensitive electronic assemblies in indoor or outdoor environments.
Commonly used for PCB potting or electronic assemblies, potting boxes are crafted from ABS plastic or durable aluminum.
Made from ABS plastic or aluminum, desktop enclosures provide reliable protection for PCBs and other electronic components in table-top or instrument applications.
Aluminum enclosures are available in various sizes and styles, and provide excellent durability and temperature tolerance.
Polycase junction boxes are designed for a variety of outdoor applications and are crafted in steel, aluminum, ABS, or polycarbonate.
Reliable, easy and cost-effective.
