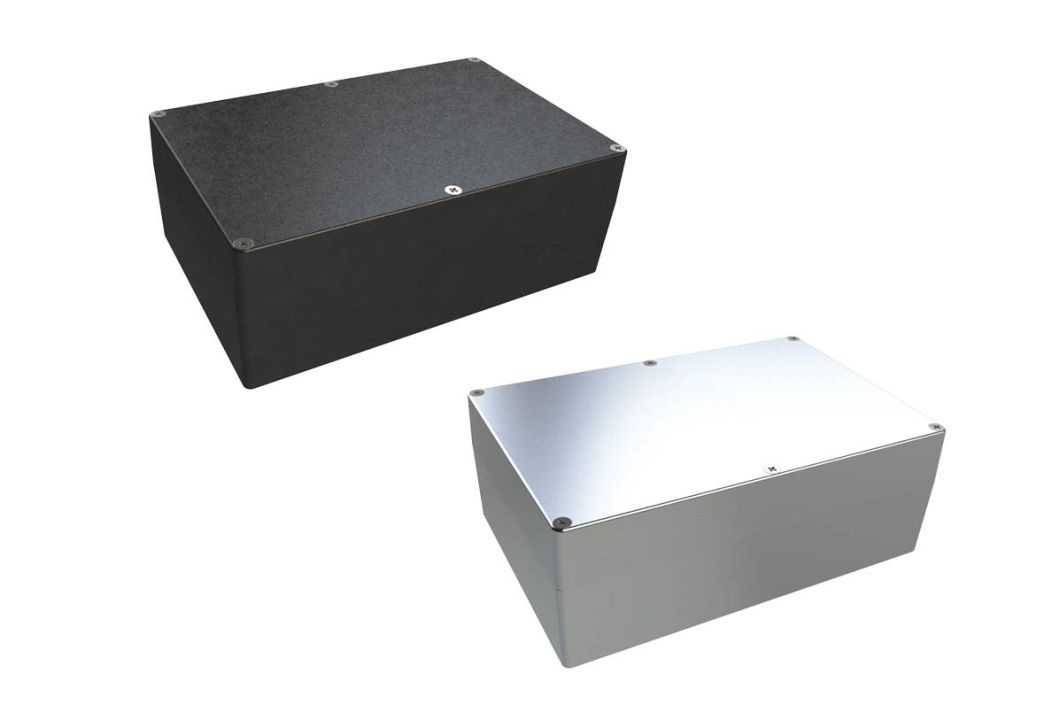

AN-08P AN Series Diecast Aluminum NEMA Enclosures

8.76 x 5.75 x 3.24 in. / 222.50 x 146.05 x 82.30 mm. / 4.36 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Captive, stainless steel screws thread through cover into base
  • Natural or black (powder coated) finish
  • Optional AN-07K panel and AN-90 mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-08P-01 Die Cast Aluminum Yes   Yes
AN-08P-02 Die Cast Aluminum   Yes Yes
