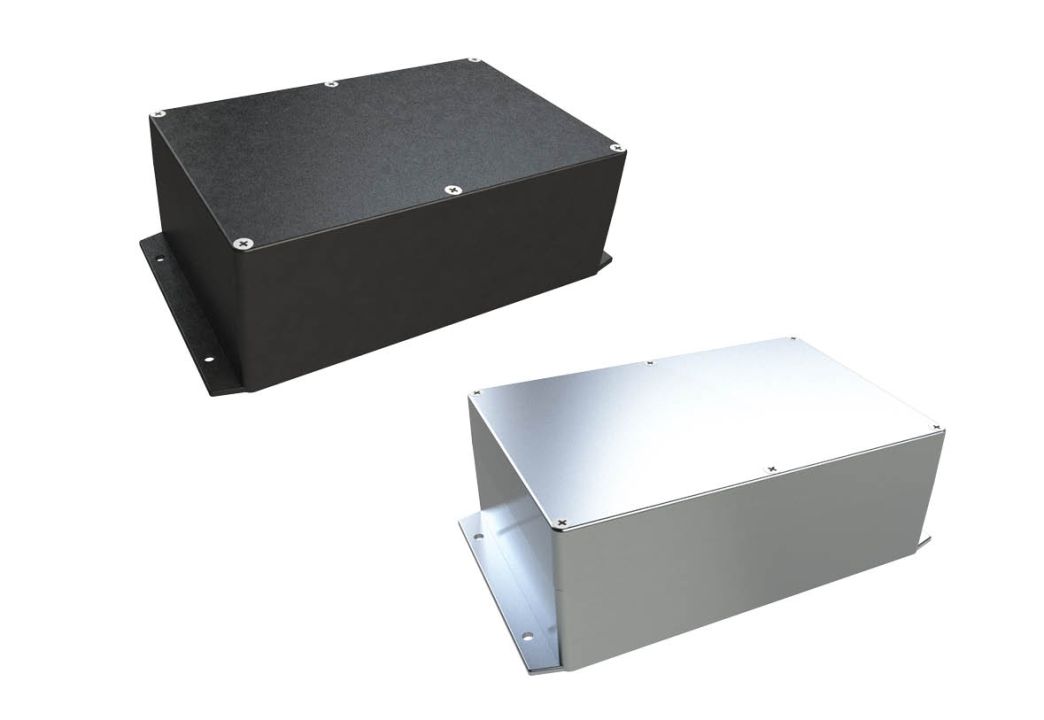

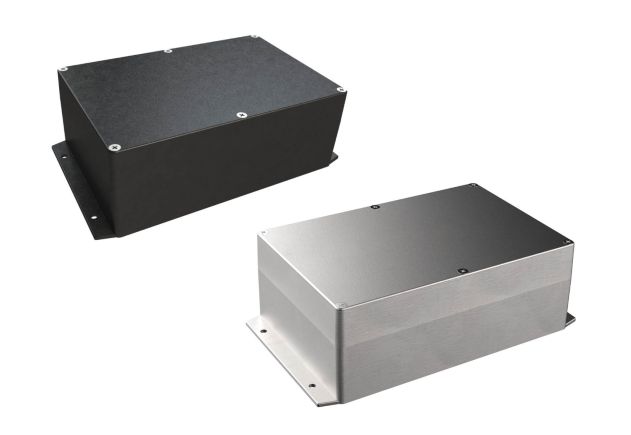

AN-08F AN Series Diecast Aluminum NEMA Enclosures

8.76 x 5.75 x 3.24 in. / 222.50 x 146.05 x 82.30 mm. / 4.36 lbs

  • #ADC-12 alloy die cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Captive, stainless steel screws thread through cover into base
  • Optional mounting panel AN-07K and pole mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-08F-01 Die Cast Aluminum Yes   Yes
AN-08F-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$51.30
10 to 49$42.75
50 to 99$38.50
100 to 249$34.20
250 to 499$34.00
500 to 999$34.00
1000+$34.00
