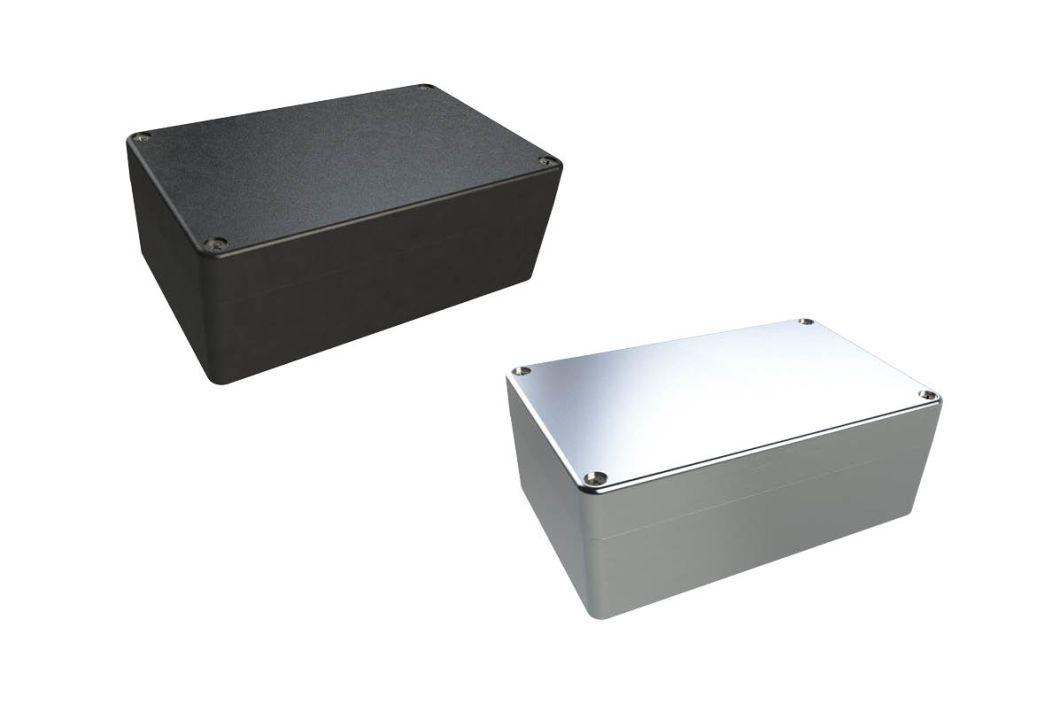

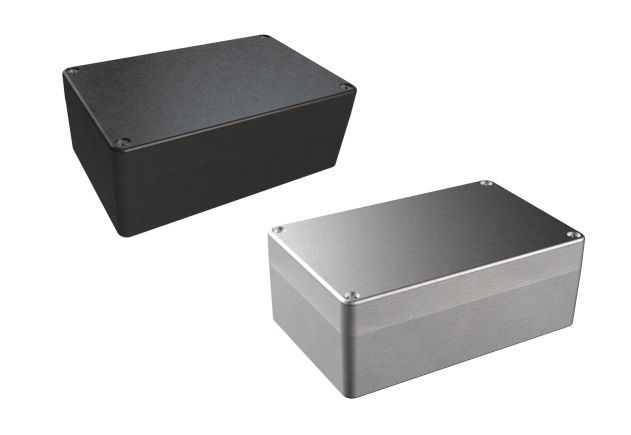

AN-16P AN Series Diecast Aluminum NEMA Enclosures

6.29 x 3.93 x 2.37 in. / 159.77 x 99.82 x 60.20 mm. / 1.43 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Optional AN-16K panel and AN-90 mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-16P-01 Die Cast Aluminum Yes   Yes
AN-16P-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$35.10
10 to 49$29.25
50 to 99$26.35
100 to 249$23.40
250 to 499$23.20
500 to 999$23.20
1000+$23.20
