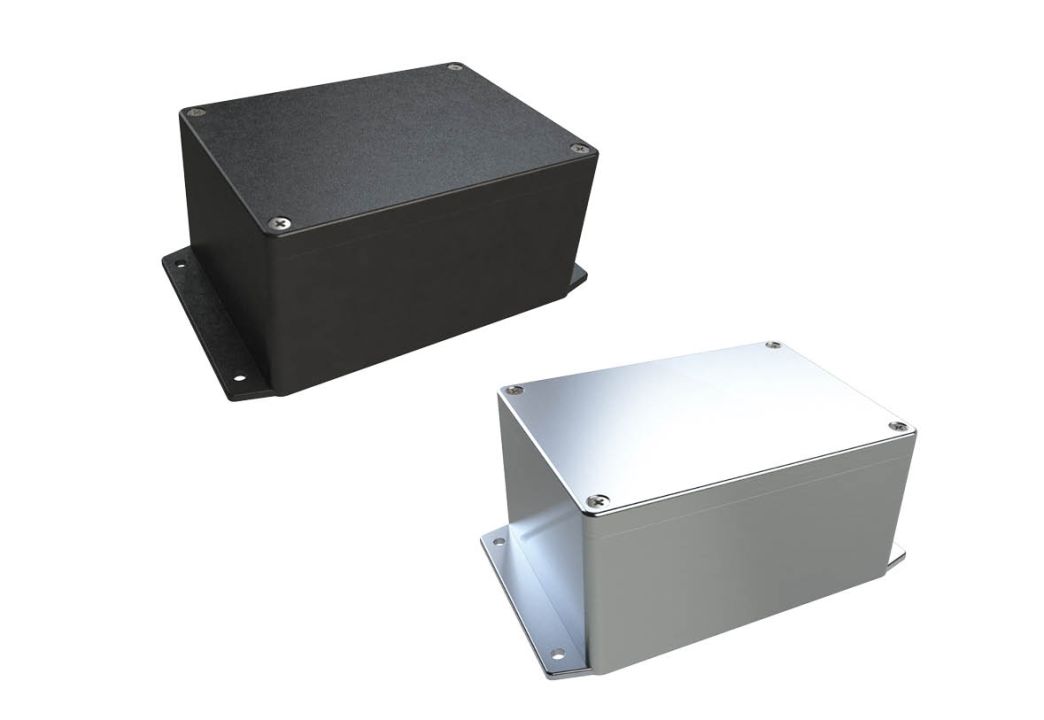

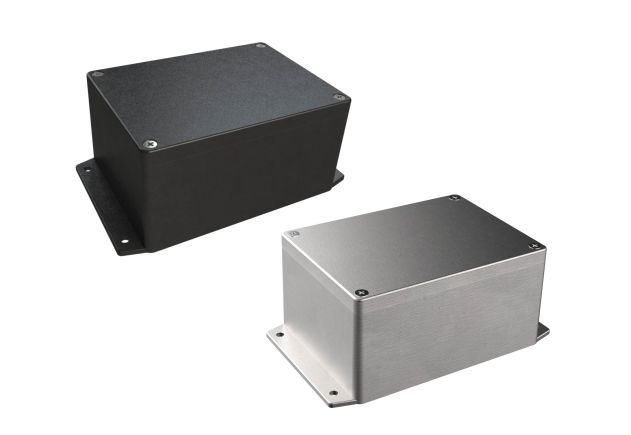

AN-05F Diecast Aluminum NEMA Enclosure
5.83 x 4.25 x 2.95 in / 148.08 x 107.95 x 74.93 mm
View Details
In stock
- #ADC-12 alloy die-cast aluminum box
- Molded on flanges
- UL & cUL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
- Rated to IP67 / IP68
- Watertight gasket (installation required)
- Provides a degree of inherent EMI/RFI attenuation
- Stainless steel screws
- Natural or black (powder coated) finish
| Color | ||
|---|---|---|
| Part # | Natural | Black |
| AN-05F-01 | ||
| AN-05F-02 | ||
Optional Accessories Include:
- Internal aluminum mounting panel and screws - AN-05K
- Pole mounting kit for mounting along width or length - PK-085
- Internal PCB mounting boss screws - AN PCB Screws
Models, Drawings, Material Specs and Other Files
3D Model
AN-05F STEP
2D Drawing
AN-05F DWG
2D Drawing
AN-05F PDF
Material Spec
AN Material Specs
Other Files
AN-05F Printing Template
Related Products
-
EX-58 Extruded Aluminum EnclosureAs low as $26.96 -
AN-05K Panel for AN-05 EnclosuresAs low as $6.44 -
AN-05P Diecast Aluminum NEMA EnclosureAs low as $22.05 -
AN-17F Diecast Aluminum NEMA EnclosureAs low as $25.07 -
PK-085 Pole Mount KitAs low as $47.30
CNC Machining
Save time and money with CNC machining services. Guaranteed accuracy, no scrap and 1-3 week lead times. It's that simple.
Learn MoreDigital Printing

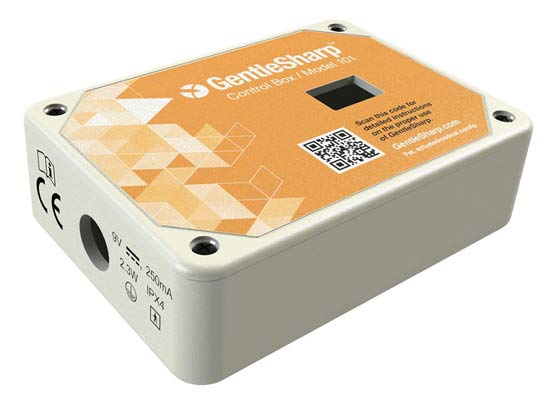

Skip the label. Take your product to the next level with vibrant one-of-a-kind graphics printed directly on the enclosure.
