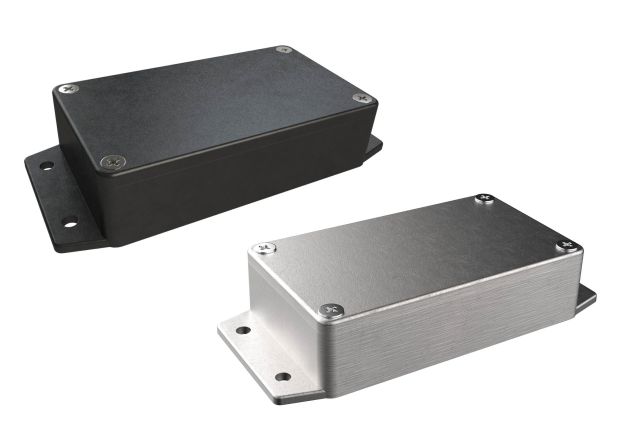

AN-02F AN Series Diecast Aluminum NEMA Enclosures

4.53 x 2.56 x 1.18 in. / 115.06 x 65.02 x 29.97 mm. / 0.50 lbs

  • #ADC-12 alloy die cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Optional AN-02K panel available

3D Models

2D Drawings

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-02F-01 Die Cast Aluminum Yes   Yes
AN-02F-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

Quantity Price
1 to 9 $16.90
10 to 49 $14.10
50 to 99 $12.70
100 to 249 $11.30
250 to 499 $11.20
500 to 999 $11.20
1000+ $11.20
