Part
AN-02K
External Dimensions 4.0 x 2.0 x 0.0 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $8.07
10 - 49 $6.87
50 - 99 $6.25
100 - 249 $5.74
250+ $5.58
Part
AN-02K
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

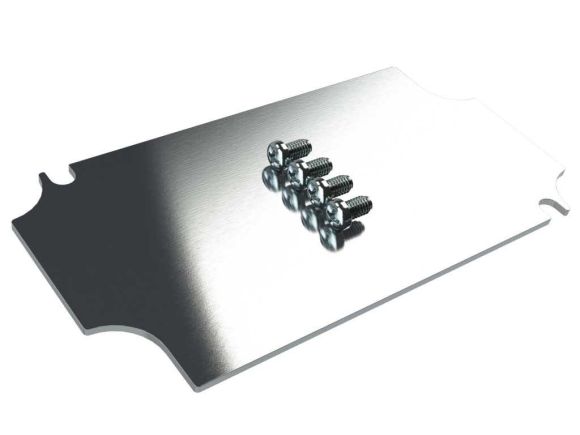

The AN-02K aluminum internal panel, with a natural finish and a thickness of 0.06", is designed specifically for AN-02P, AN-02F, AN-03P and AN-03F enclosures. The product comes complete with mounting screws for easy installation.
Specifications for
AN-02K
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.0 x 2.0 x 0.0 in
103 x 53 x 2 mm
Weight 0.06 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
Assembly Screws Steel
General
Series
Color Metallic
Country of Origin United States United States
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel and 4 screws
Screw Torque 6 in lbs
Inventory for
AN-02K
In stock
Number of Units in Stock Hover me Stock available to ship within 1-2 business days 44
Additional Stock
Ready To Ship in 2 Weeks 68
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. Up to 6 weeks

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Polycase always tries to maintain adequate stock of all items, but if potential extended lead times are a concern, please contact us. We would be happy to recommend alternative items with shorter lead times!

Downloads

Models & Drawings
3D Model AN-02K STEP
2D Drawing DWG AN-02K DWG
2D Drawing PDF AN-02K PDF
Certifications & Testing
USMCA Certificate of Origin USMCA Aluminum Panels

Enclosure Guide

Compatible Enclosures
AN Series AN-02 Aluminum Enclosures AN-02F , AN-02P
AN Series AN-03 Aluminum Enclosures AN-03F , AN-03P
