AN-03P Diecast Aluminum NEMA Enclosure

Electronic metal housing for outdoor applications

Part
AN-03P
External Dimensions 4.53 x 2.56 x 2.17 in
In stock
Color
Unit Price $14.48
Part
AN-03P
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

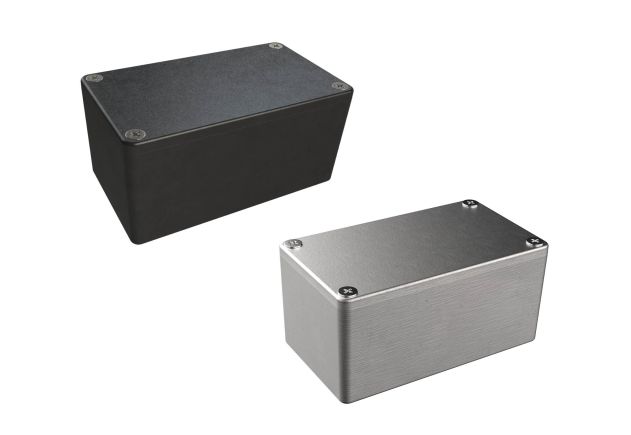

The AN-03P ADC-12 alloy diecast aluminum housing is rated up to NEMA 6P (IP68 equivalent) and provides a degree of natural attenuation against harmful EMI/RFI. Ideal for IoT and other electronic applications, the AN-03P is an enclosure with the option of a natural brushed aluminum finish or black powder-coated finish. Both color choices include silver stainless steel screws for assembly. Secure your PCB with the 4 mounting bosses available in the base, or opt for the internal mounting panel (sold separately).
Specifications for
AN-03P
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied with cable gland.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Out-Of-Stock Lead Time Hover me Anticipated lead time if part is not in stock.
Screw Type
Screw Use
Returnable
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
AN-03P
Updated: 05/29/24 01:01 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me Anticipated lead time if part is not in stock.
Returnable

Downloads

Models & Drawings
3D Model AN-03P STEP
2D Drawing DWG AN-03P DWG
2D Drawing PDF AN-03P PDF
Other Files AN-03P Printing Template
Material Specs
Aluminum Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel AN-02K
PCB Mounting Boss Screws SCREWS-050-100
Surface Mounting Kit AN-90

Part Numbers

Color
Part #NaturalBlack
AN-03P-01
AN-03P-02

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
4.53 x 2.56 x 2.17 in
Taiwan, Province of China
2-18 weeks
Natural or Black
Aluminum
Outdoor use
4, 4X, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Offers EMI/RFI protection
  • Natural finish or black powder coat
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
