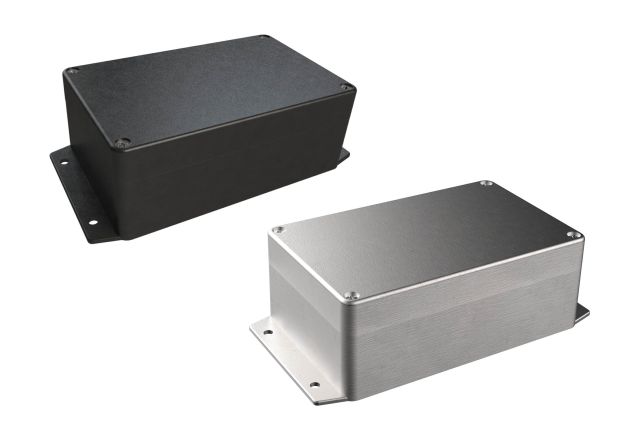

AN-16F Diecast Aluminum NEMA Enclosure

6.29 x 3.93 x 2.37 in / 159.77 x 99.82 x 60.20 mm
View Details
In stock
Unit Price $28.20
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • The AN-16F-02 (black powder coat) is on backorder, view other sizes of AN Series
  • #ADC-12 alloy die-cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket
  • Offers EMI/ RFI protection
  • Captive, stainless steel screws thread through cover into base
  • Natural or black (powder coated) finish
NEMA Rating4, 4X, 6, 6P, 12, 13
IP RatingIP67, IP68
Part #NaturalBlack

Optional Accessories Include:

  • Internal aluminum mounting panel and screws - AN-16K
  • Pole mounting kit for mounting along width - PK-085
  • Pole mounting kit for mounting along length - PK-124
  • Internal PCB mounting boss screws - AN PCB Screws

Models, Drawings, Material Specs and Other Files

3D Model AN-16F STEP
2D Drawing AN-16F DWG
2D Drawing AN-16F PDF
Material Spec AN Material Specs
