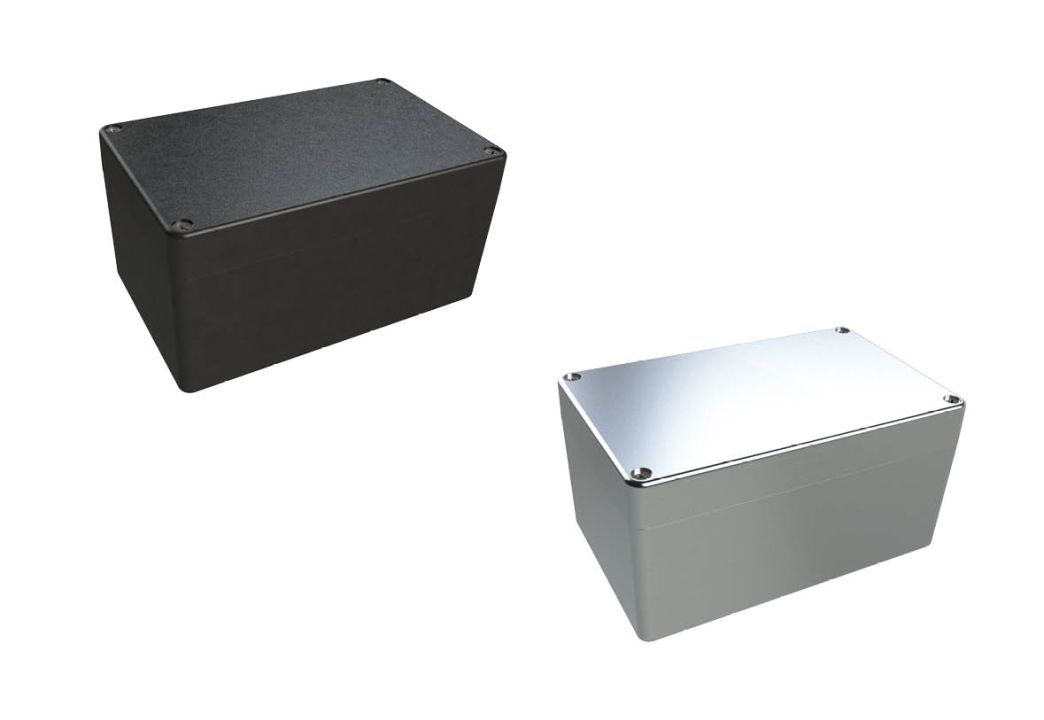

AN-17P AN Series Diecast Aluminum NEMA Enclosures

6.29 x 3.93 x 3.19 in. / 159.77 x 99.82 x 81.03 mm. / 1.71 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection

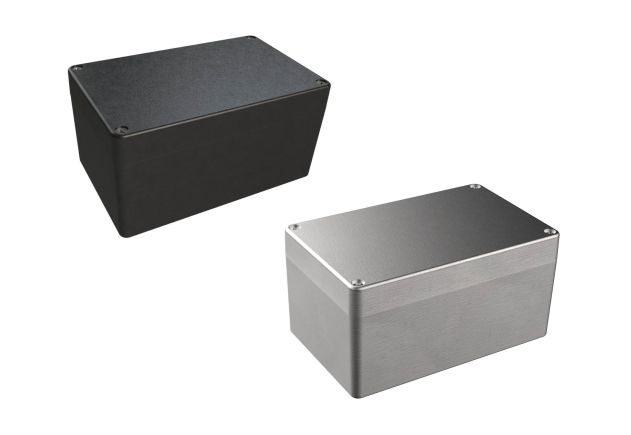

  • Natural or black (powder coated) finish
  • Captive, stainless steel screws thread through cover into base
  • Optional AN-16K panel and AN-90 mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-17P-01 Die Cast Aluminum Yes   Yes
AN-17P-02 Die Cast Aluminum   Yes Yes
