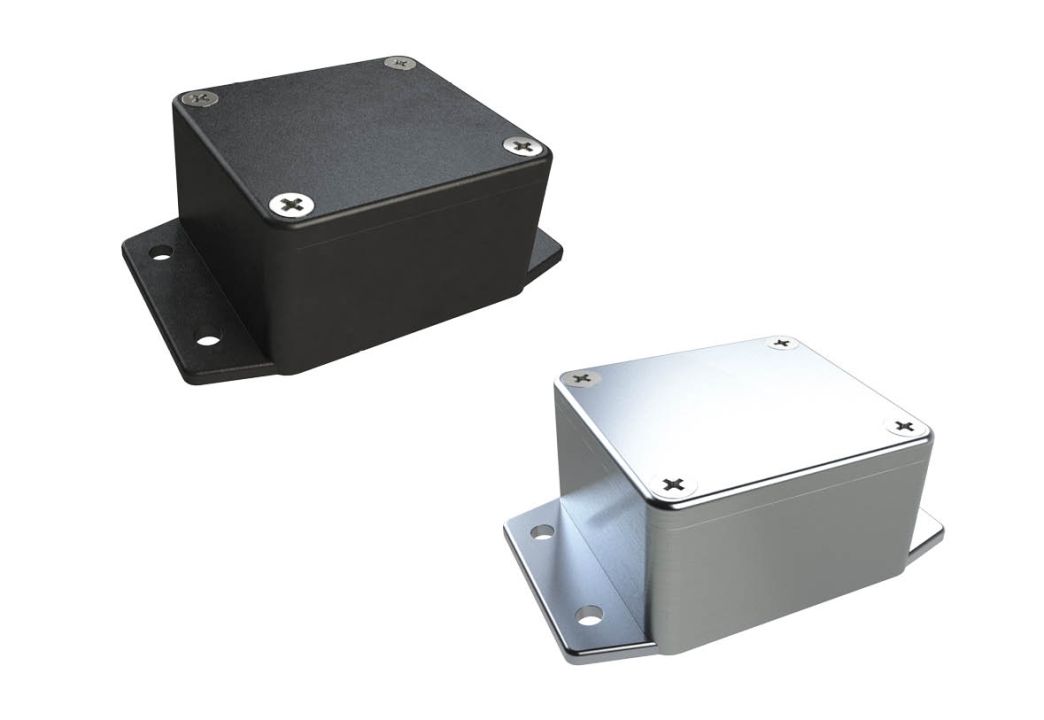

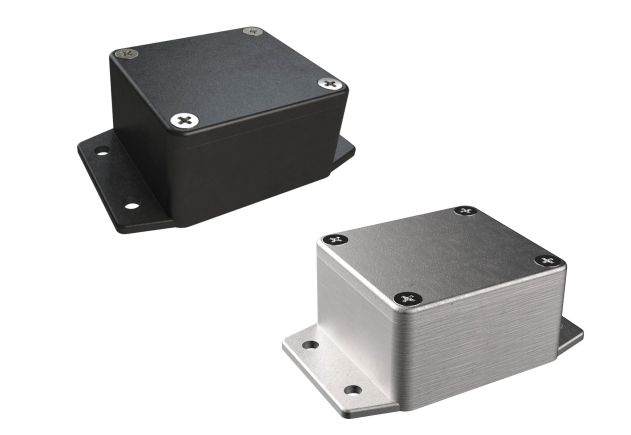

AN-01F AN Series Diecast Aluminum NEMA Enclosures

2.52 x 2.28 x 1.38 in. / 64.01 x 57.91 x 35.05 mm. / 0.32 lbs

  • #ADC-12 alloy die cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Optional AN-01K panel available

3D Models

2D Drawings

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-01F-01 Die Cast Aluminum Yes   Yes
AN-01F-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

Quantity Price
1 to 9 $12.40
10 to 49 $10.35
50 to 99 $9.30
100 to 249 $8.30
250 to 499 $8.25
500 to 999 $8.25
1000+ $8.25
