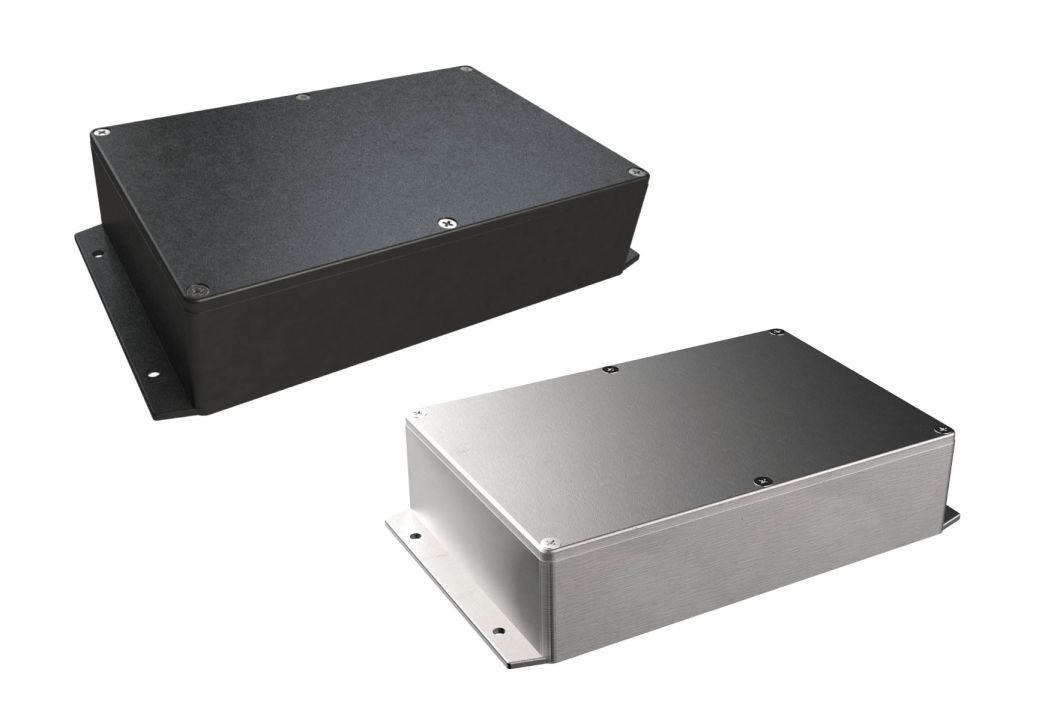

AN-07F Diecast Aluminum NEMA Enclosure

8.76 x 5.75 x 2.17 in / 222.50 x 146.05 x 55.12 mm
View Details
In stock
Unit Price $32.47
Part
AN-07F
Increase Down Increase Up
Customize It
  • #ADC-12 alloy die cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Captive, stainless steel screws thread through cover into base
RatingSpecification
NEMA Rating4, 4X, 6, 6P, 12, 13
IP RatingIP67, IP68
Color
Part #NaturalBlack
AN-07F-01
AN-07F-02

Optional Accessories Include:

  • Internal aluminum mounting panel and screws - AN-07K
  • Pole mounting kit for mounting along width - PK-085
  • Pole mounting kit for mounting along length - PK-124
  • Internal PCB mounting boss screws - AN PCB Screws

Models, Drawings, Material Specs and Other Files

3D Model AN-07F STEP
2D Drawing AN-07F DWG
2D Drawing AN-07F PDF
Material Spec AN Material Specs
