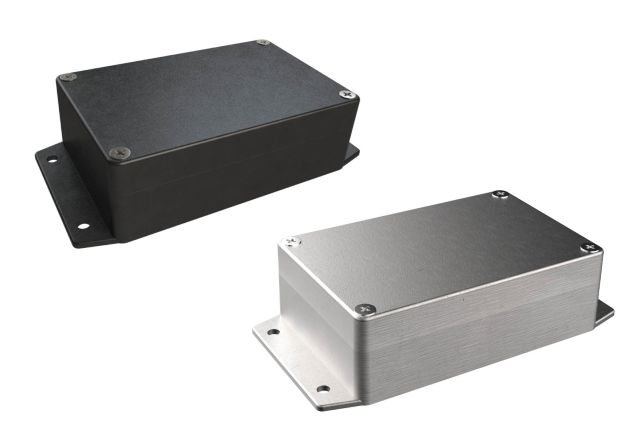

AN-13F Diecast Aluminum NEMA Enclosure

Surface-mounting aluminum enclosure with watertight gasket

Part
AN-13F
External Dimensions 4.90 x 3.14 x 1.59 in
In stock
Color
Unit Price $15.67
Part
AN-13F
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The AN-13F ADC-12 alloy diecast aluminum shallow enclosure is ideal for electronics in outdoor applications. Built to withstand harsh environments, the AN-13F is rated up to NEMA 6P (IP68 equivalent) and provides an inherent level of EMI/RFI attenuation to protect against harmful interference. Molded on flanges help to simplify surface mounting, while options of a natural brushed aluminum or black powder-coated finish let you choose the right look for your project. Both color choices include silver stainless steel screws for assembly. Secure your PCB with the 6 mounting bosses available in the base, or opt for the internal mounting panel (sold separately).
Specifications for
AN-13F
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied with cable gland.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Screw Type
Screw Use
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
AN-13F
Updated: 05/27/24 01:01 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time
Returnable

Downloads

Models & Drawings
3D Model AN-13F STEP
2D Drawing DWG AN-13F DWG
2D Drawing PDF AN-13F PDF
Other Files AN-13F Printing Template
Material Specs
Aluminum Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel AN-13K
PCB Mounting Boss Screws SCREWS-050-100
Pole Mounting Kit (Installed Along Width or Length) PK-085

Part Numbers

Color
Part #NaturalBlack
AN-13F-01
AN-13F-02
