AN-12F Diecast Aluminum NEMA Enclosure

Diecast aluminum enclosure with welded on flanges

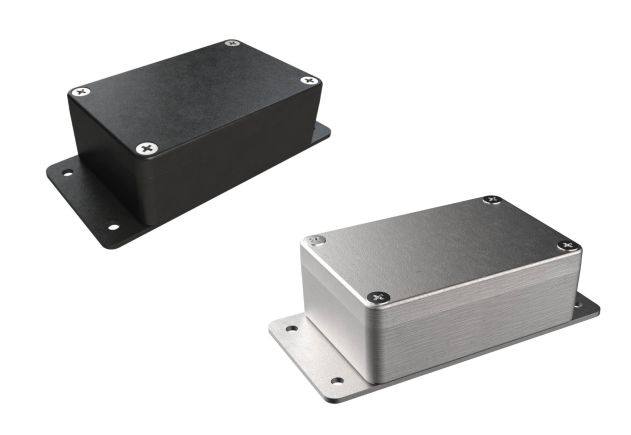

AN-12F Natural diecast aluminum enclosure with flanges for wall mounting - 3.85 x 2.52 x 1.35 inches
AN Series
Part
AN-12F
External Dimensions 3.85 x 2.52 x 1.35 in
In stock
Color
Unit Price $23.45
Part
AN-12F
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Compare WishList
Product Overview
The AN-12F ADC-12 alloy diecast aluminum housing is ideal for electronics in outdoor applications. Built to withstand harsh environments, the AN-12F is rated up to NEMA 6P (IP68 equivalent) and provides an inherent level of EMI/RFI attenuation to protect against harmful interference. Welded on flanges help to simplify surface mounting, while options of a natural brushed aluminum or black powder-coated finish let you choose the right look for your project. Both color choices include silver stainless steel screws for assembly. Secure your PCB with the two mounting bosses available in the base, or opt for the internal mounting panel (sold separately).
Specifications for
AN-12F
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Screw Type
Screw Use
Returnable
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
AN-12F
In stock
Number of Units in Stock
Ready To Ship in 2-3 Days
Additional Stock
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Returnable

Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.

Downloads

Models & Drawings
3D Model AN-12F STEP
2D Drawing DWG AN-12F DWG
2D Drawing PDF AN-12F PDF
Other Files AN-12F Printing Template
Material Specs
Aluminum Material Specs Aluminum Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel AN-12K
PCB Mounting Boss Screws SCREWS-050-100

Part Numbers

Color
Part #NaturalBlack
AN-12F-01
AN-12F-02
Frequently Bought Together
  1. AN-12K internal aluminum mounting panel for AN Series enclosures
    AN-12K Panel for AN-12 Enclosures
    As low as $5.85
    Add to Wish List Add to Compare
  2. Gray plastic cable glands for enclosures - rated NEMA 4X & 6P
    CG3 Gray Cable Glands
    As low as $1.12
    Choose Option
    Add to Wish List Add to Compare
  3. Black plastic cable glands for enclosures - rated NEMA 4X
    CG1 Black Cable Glands
    As low as $1.40
    Choose Option
    Add to Wish List Add to Compare
  4. SCREWS-050-100 PCB mounting boss screws for AN series enclosures
    AN Series PCB Screws (bag of 100 screws)
    As low as $6.88
    Add to Wish List Add to Compare

Compare with Similar Items

Customer Rating
External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Country of Origin
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Color
Material
Application
NEMA Ratings Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
Mounting Style
Internal Mounting Option
Features
AN-12F Natural diecast aluminum enclosure with flanges for wall mounting - 3.85 x 2.52 x 1.35 inches AN-12F Diecast Aluminum NEMA Enclosure
3.85 x 2.52 x 1.35 in
3.50 x 2.16 x 1.12 in
Taiwan, Province of China
2-16 weeks
Natural or Black
Aluminum
Outdoor use
4, 4X, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Welded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Degree of inherent EMI/RFI protection
  • Natural finish or black powder coat
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
