AN-12P AN Series Diecast Aluminum NEMA Enclosures

3.85 x 2.52 x 1.35 in. / 97.79 x 64.01 x 34.29 mm. / 0.43 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Captive, stainless steel screws thread through cover into base
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection

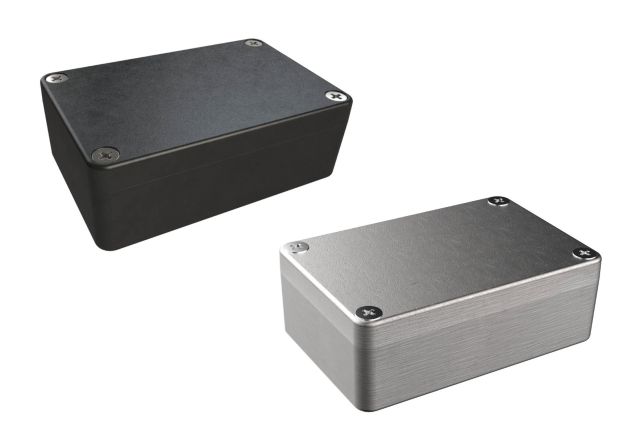

  • Natural or black (powder coated) finish
  • Optional AN-12K panel and AN-90 mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-12P-01 Die Cast Aluminum Yes   Yes
AN-12P-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$14.00
10 to 49$11.65
50 to 99$10.50
100 to 249$9.30
250 to 499$9.25
500 to 999$9.25
1000+$9.25
