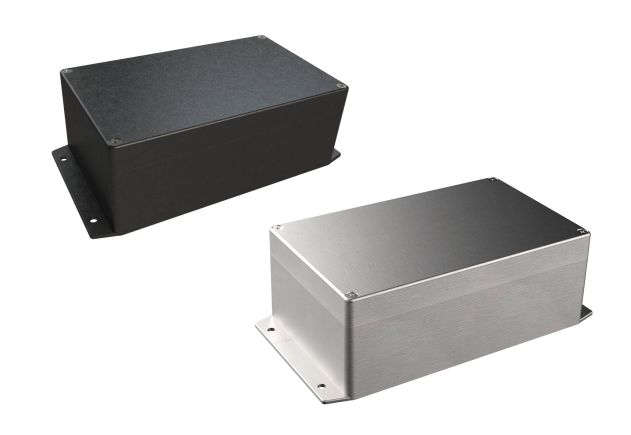

AN-22F Diecast Aluminum NEMA Enclosure

7.87 x 4.72 x 2.95 in / 200 x 120 x 75 mm
View Details
In stock
Color
Unit Price $44.15
Part
AN-22F
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
  • #ADC-12 alloy die-cast aluminum box
  • UL & cUL Listed (File E194432)
  • NEMA 4, 4X, 6, 6P, 12 & 13 rated
  • IP67 rated
  • Meets IP65, IP66, IP67 & IP68 specifications based on NEMA/UL Type rating conversion
  • Molded on flanges
  • Watertight gasket
  • Provides a degree of inherent EMI/RFI attenuation
  • Natural or black (powder-coated) finish
  • Stainless steel screws

Note: Black version utilizes natural stainless steel screws that do not color match the black powdered finish

RatingSpecification
NEMA Rating4, 4X, 6, 6P, 12, 13
IP EquivalentIP65, IP66, IP67, IP68
Color
Part #NaturalBlack
AN-22F-01
AN-22F-02

Optional Accessories Include:

  • Internal aluminum mounting panel and screws - AN-22K
  • Pole mounting kit for mounting along width - PK-085
  • Pole mounting kit for mounting along length - PK-124
  • Internal PCB mounting boss screws - AN PCB Screws

Models, Drawings, Material Specs and Other Files

3D Model AN-22F STEP
2D Drawing AN-22F DWG
2D Drawing AN-22F PDF
Material Spec AN Material Specs
