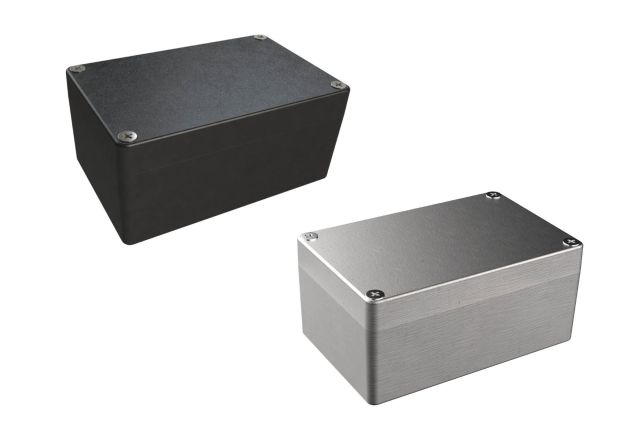

AN-14P AN Series Diecast Aluminum NEMA Enclosures

4.90 x 3.14 x 2.26 in. / 124.46 x 79.76 x 57.40 mm. / 0.94 lbs

  • #ADC-12 alloy die cast aluminum box
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Captive, stainless steel screws thread through cover into base
  • Natural or black (powder coated) finish
  • Optional AN-13K panel and AN-90 mounting kit available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-14P-01 Die Cast Aluminum Yes   Yes
AN-14P-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$23.10
10 to 49$19.25
50 to 99$17.35
100 to 249$15.40
250 to 499$15.30
500 to 999$15.30
1000+$15.30
