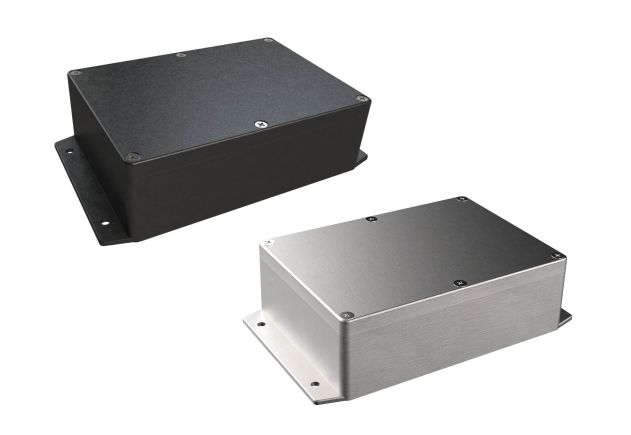

AN-06F AN Series Diecast Aluminum NEMA Enclosures

6.73 x 4.76 x 2.17 in. / 170.94 x 120.90 x 55.12 mm. / 1.50 lbs

  • #ADC-12 alloy die cast aluminum box
  • Molded on flanges
  • UL Listed NEMA Type 4X, 6, 6P, 12 & 13 (File E194432)
  • Rated to IP67 / IP68
  • Watertight gasket (installation required)
  • Offers EMI/ RFI protection
  • Natural or black (powder coated) finish
  • Captive, stainless steel screws thread through cover into base
  • Optional AN-06K panel available

Material Specifications

   COLOR    WATERPROOF
Part Number Material Natural Finish  Black (Powder Coated)  Gasket
AN-06F-01 Die Cast Aluminum Yes   Yes
AN-06F-02 Die Cast Aluminum   Yes Yes
Options & Pricing
Category
Color
Series
IP Rating
NEMA Rating
Material
Application

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$40.40
10 to 49$33.65
50 to 99$30.30
100 to 249$26.90
250 to 499$26.70
500 to 999$26.70
1000+$26.70
