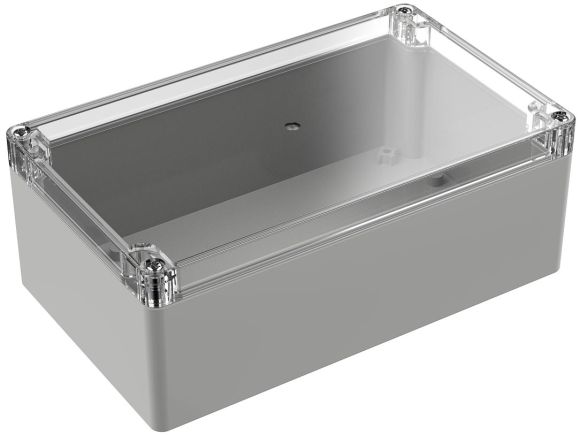

WC-34 WC Series Outdoor Enclosures with Clear Covers

7.87 x 4.72 x 2.95 in. / 199.90 x 119.89 x 74.93 mm. / 0.90 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Internal mounting panel WX-30 available as an accessory

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-34*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses
