WX-30 Panel for WA/WP/WC Series Enclosures

External Dimensions 7.50 x 4.35 x 0.06 in
In stock
Color Metallic
Qty Price / Unit
1 - 9 $10.70
10 - 49 $9.10
50 - 99 $8.01
100 - 249 $7.21
250 - 499 $6.85
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

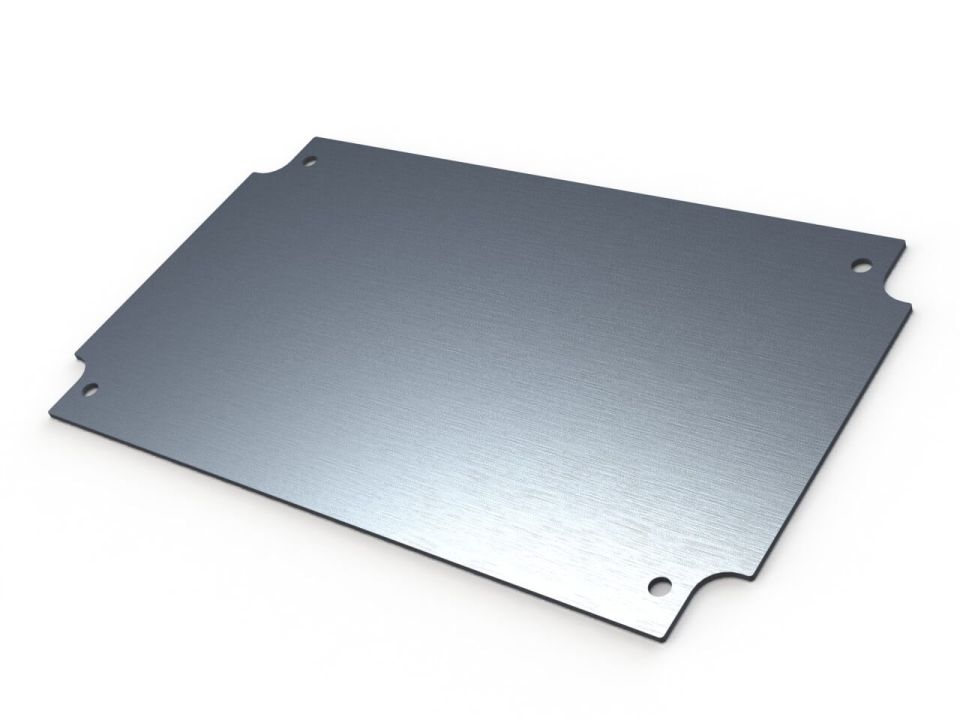

The aluminum 0.06" thick mounting panel is designed to fit the WA-34, WC-34, and WP-34 enclosures. The panel fastens to the mounting bosses inside the base of the enclosure utilizing the screws that are included.
Specifications for
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
7.50 x 4.35 x 0.06 in
191 x 110 x 2 mm
Weight 0.24 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Panel Aluminum
Assembly Screws Steel
Color Metallic
Country of Origin United States United States
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Panel and screw pack


Models & Drawings
3D Model WX-30 STEP
2D Drawing DWG WX-30 DWG
2D Drawing PDF WX-30 PDF

Enclosure Guide

Compatible Enclosures
WA Series ABS Enclosures WA-34
WC Series Clear Cover Enclosures WC-34
WP Series Polycarbonate Enclosures WP-34
