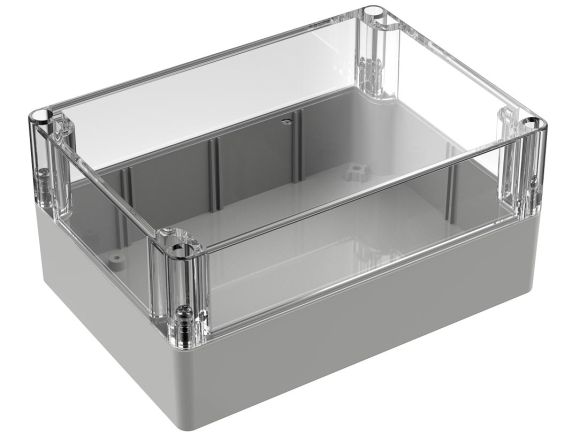

WC-27 WC Series Outdoor Enclosures with Clear Covers

6.73 x 4.76 x 3.15 in. / 170.94 x 120.90 x 80.01 mm. / 0.81 lbs

The WC-27 offers

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  • Captive, stainless steel screws thread into brass inserts for cover on/cover off applications
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • For this case with mounting flanges, click here

Internal mounting panel WX-22 available as an accessoryWX-14

Click here to purchase NEMA 4X cable glandsCG-11

Also known as PN-1327 or PN-1327-C

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-27*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses
