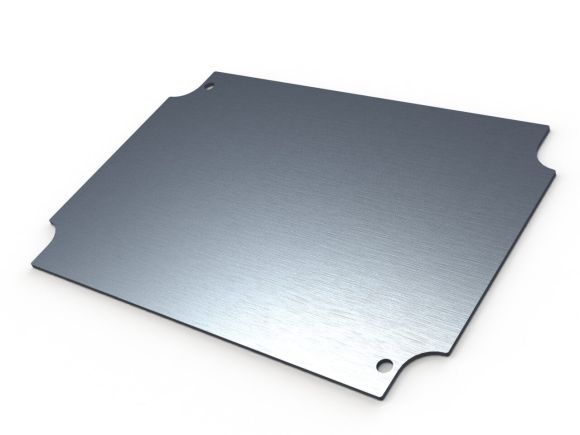

The aluminum 0.06" thick mounting panel is designed to fit the WA-24, WA-24F, WA-27, WA-27F, WC-24, WC-24F, WC-27, WC-27F, WP-24, WP-24F, WP-27 and WP-27F enclosures. The panel fastens to the mounting bosses inside the base of the enclosure utilizing the screws that are included.

Specifications for

WX-22

Dimensions

Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.	6.2 x 4.2 x 0.0 in 159 x 109 x 2 mm
Weight	0.21 lbs
2d Drawing PDF	Download 2D Drawing PDF

Material Details

Panel	Aluminum
Assembly Screws	Steel

General

Series	WC Series Accessories WP Series Accessories WA Series Accessories
Color	Metallic
Country of Origin	United States

Assembly Details

Components Include

Panel and screw pack

Inventory for

WX-22

In stock

Number of Units in Stock

666

Additional Stock

Out-Of-Stock Lead Time

Up to 6 weeks
