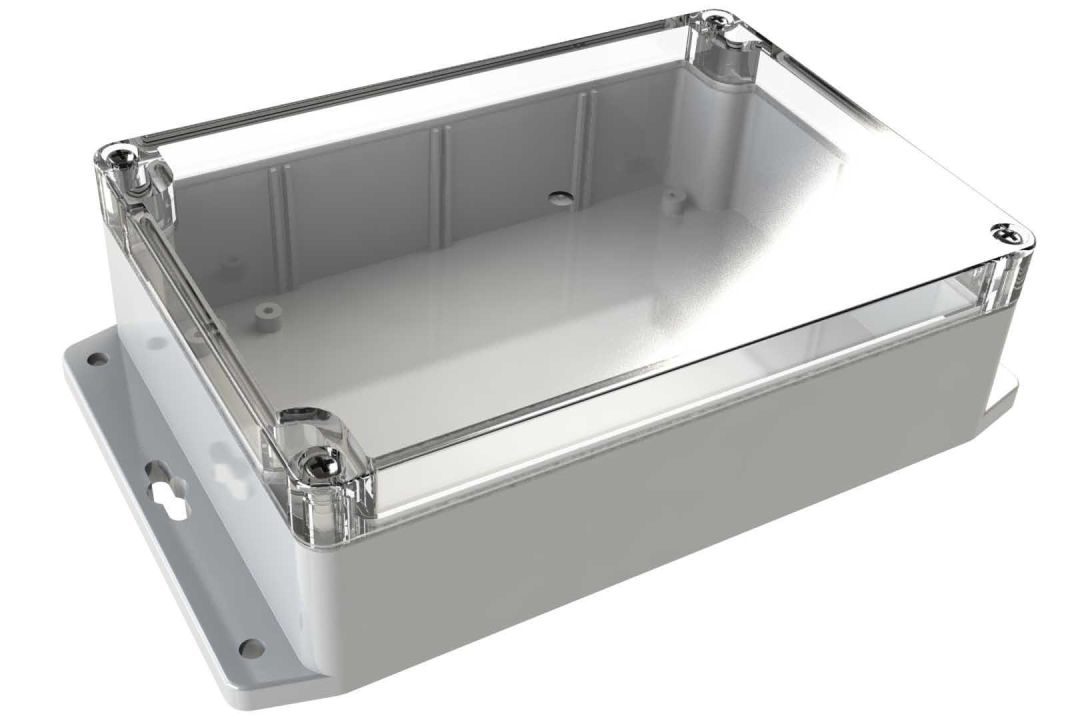

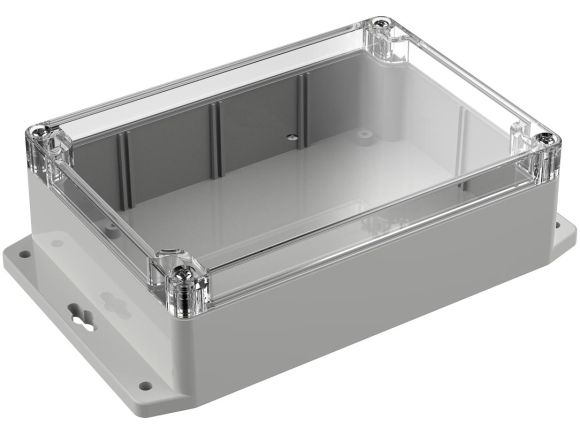

WC-24F Outdoor Enclosure with Clear Cover

Medium-sized clear cover enclosure with mounting flanges

Part
WC-24F*1508
External Dimensions 6.73 x 4.76 x 2.17 in
In stock
Color Gray with Clear Cover
QtyPrice / Unit
1 - 9 $27.36
10 - 49 $23.53
50 - 99 $20.94
100 - 249 $18.84
250 - 499 $17.90
More
Part
WC-24F*1508
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The WC-24F medium-sized enclosure is constructed from impact-resistant polycarbonate, offering a gray base with molded on mounting flanges, and a clear cover that has a silicone rubber gasket for protection against harsh outdoor conditions. Secure your PCB easily utilizing the 6 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WC-24F*1508
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
6.73 x 4.76 x 2.17 in
171 x 121 x 55 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
6.46 x 4.50 x 1.95 in
164 x 114 x 50 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.118 in
Weight 0.68 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base Polycarbonate
Cover Polycarbonate
Gasket Silicone
Assembly Screws Stainless steel
Application
Application Outdoor use
UV Resistant Yes
Waterproof Yes
General
Series
Color Gray with Clear Cover
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, gasketed cover, and 4 screws
Screw Torque 8 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E194432
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP65
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model WC-24F STEP
2D Drawing DWG WC-24F DWG
2D Drawing PDF WC-24F PDF
Other Files WC-24F Printing Template
Material Specs
WC & WP Series Material Specs Polycarbonate Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel WX-22
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Cable Management & Venting Accessories Cable Glands & Vents

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
6.73 x 4.76 x 2.17 in
Taiwan, Province of China
2-16 weeks
Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
6.73 x 4.76 x 2.17 in
Taiwan, Province of China
2-16 weeks
Gray
Polycarbonate
Outdoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
7.61 x 4.61 x 2.26 in
United States
1 week
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Machine screws for on/off convenience
  • Pole mount kit available (sold separately)
6.63 x 4.68 x 2.37 in
United States
1 week
Black or Gray
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Molded-on flange
  • PCB mounting bosses in cover and base
  • Cover screws into brass inserts for on/off convenience
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Machine screws for on/off convenience
6.73 x 4.76 x 2.17 in
Taiwan, Province of China
2-16 weeks
Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
