HP-060504 IP66 Weatherproof Junction Box

Waterproof electrical box molded from gray or black polycarbonate

New
Part
HP-060504
External Dimensions 6.22 x 5.22 x 4.28 in
In stock
Color
Unit Price $31.38
Part
HP-060504
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

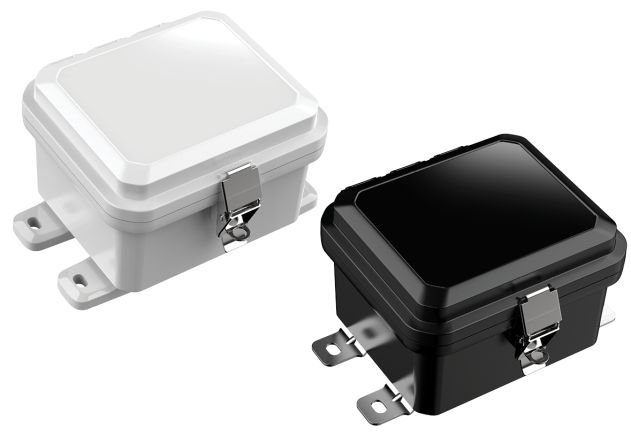

The HP-060504 hinged electronic case is molded from black or gray polycarbonate with the option of a clear cover. Designed to meet a wide range of applications, this enclosure provides three external mounting options: plastic feet, stainless steel feet, or no feet, along with a stainless steel latch with a padlock hasp. Secure your internal components effortlessly by utilizing the mounting bosses located in the base of the enclosure, or use the compatible internal mounting panel or DIN rail kits (sold separately). Ideal for outdoor applications, the case is rated up to NEMA 4X/IP66, offering protection in harsh indoor or outdoor environments.

Specifications for
HP-060504
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied with cable gland.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Screw Type
Screw Use
Returnable
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
HP-060504
Updated: 06/19/24 01:00 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Returnable

Downloads

Models & Drawings
3D Model HP-060504 STEP
2D Drawing DWG HP-060504 DWG
2D Drawing PDF HP-060504 PDF
Other Files HP-060504 Printing Template
Material Specs
Enclosure Material Specs Polycarbonate Material Spec
Certifications & Testing
HP Series UL Certificate UL Certificate & Testing Results
HP Series IP Certificate HP Series IP66 Testing Certificate

Accessory Guide

Optional Accessories
Internal Mounting Panels HP-0605K
DIN Rail Kit (Installed Along Width) DR-52
DIN Rail Kit (Installed Along Length) DR-51
Pole Mount Kit (Installed Along Width or Length) PK-067A
Cable Management & Venting Accessories Cable Glands & Vents
Mounting Boss Screws
PCB Mounting Boss Screws SCREWS-013-100

Part Numbers

ColorClear CoverExternal Mounting Style
Part #BlackGrayNoYesNonePlastic feetStainless steel feet
HP-060504-13
HP-060504-03
HP-060504-23
HP-060504-14
HP-060504-04
HP-060504-24
HP-060504-11
HP-060504-01
HP-060504-21
HP-060504-12
HP-060504-02
HP-060504-22

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
6.22 x 5.22 x 4.28 in
United States
1 week
Black or Gray
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 12, 13
IP65, IP66
  • None
  • Plastic feet
  • Stainless steel feet
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Hinged Cover
  • Area for padlock
  • Pole mount kit available (sold separately)
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
6.40 x 4.40 x 4.33 in
United States
1 week
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 12, 13, 6, 6P
IP65, IP66, IP67, IP68
  • Plastic flange
  • Plastic feet
  • PCB mounting bosses in cover and base
  • 4 different internal mounting panel kits (sold separately)
  • Hinged Cover
  • Cover screws into brass inserts for on/off convenience
  • Captive stainless-steel screws
  • Area for padlock
  • Machine screws for on/off convenience
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Tamper-resistant screws optional
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
6.38 x 4.80 x 3.54 in
Germany
Up to 14 weeks
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
4X, 12
IP65, IP66, IP67
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Centrally located bosses for DIN rail mounting
  • Thread forming cover screws
  • Captive stainless-steel screws
  • Strap for retaining cover while accessing internal components
