New
Part
DR-51
External Dimensions 3.94 x 1.38 x 0.30 in
In stock
Color Metallic
QtyPrice / Unit
1 - 9 $5.73
10 - 49 $5.14
50 - 99 $4.79
100 - 249 $4.47
250 - 499 $4.15
More
Part
DR-51
Increase Down Increase Up
Product Overview

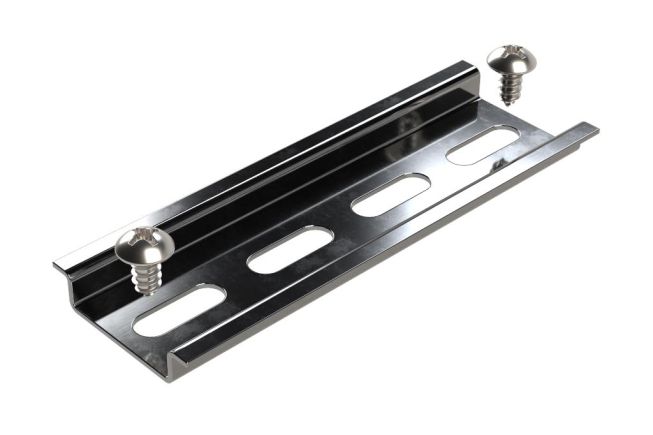

The DR-51 DIN rail kit is designed for mounting internal components securely along the length of the HP-070504 and HP-060404. It comes complete with (1) 35 mm x 7.5 mm x 100 mm din rail and (2) screws for mounting inside the base of the enclosure.

Specifications for
DR-51
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
3.94 x 1.38 x 0.30 in
100 x 35 x 8 mm
DIN Rail Length (mm) 100 mm
Weight 0.06 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
DIN Rail Steel
Assembly Screws Steel
General
Series
Color Metallic
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Din rail and 2 screws

Downloads

Models & Drawings
3D Model DR-51 STEP
2D Drawing PDF DR-51 PDF
Guides
Din Rail Cross Reference Guide Din Rail Reference Guide

Enclosure Guide

Compatible Enclosures
HP Series (Installed Along Width) HP-050403
HP Series (Installed Along Length) HP-060504 , HP-070504
