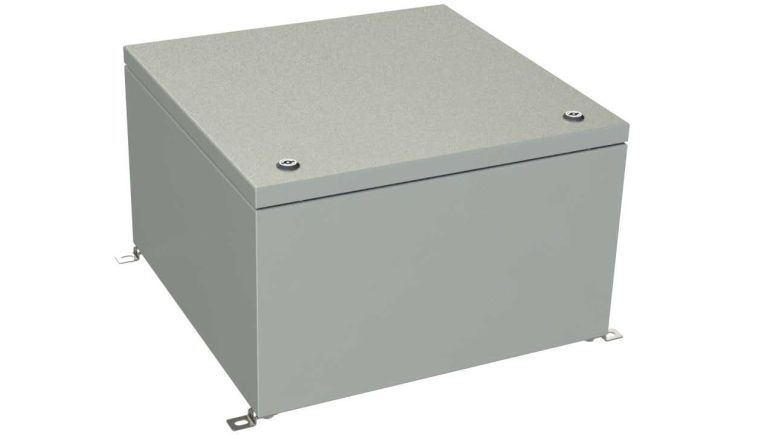

SB-49 SB Series NEMA Steel Enclosures

20.00 x 20.00 x 12.00 in. / 508.00 x 508.00 x 304.80 mm. / 29.40 lbs

  • 16 gauge steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12 (File No. E194432)
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Hinged door with keyed quarter turn latch
  • Gray powder coated finish
  • Bonding studs for grounding are provided on base and door
  • Internal panel, external mounting brackets, and hardware included
  • Touch up paint kit available SB-90

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Gray Powder Coat
    SB-49-02 Steel Yes Yes
    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4 $194.95
    5 to 9$177.40
    10 to 24$170.31
    25 to 49$154.98
    50 to 99$151.88
    100+$148.84
