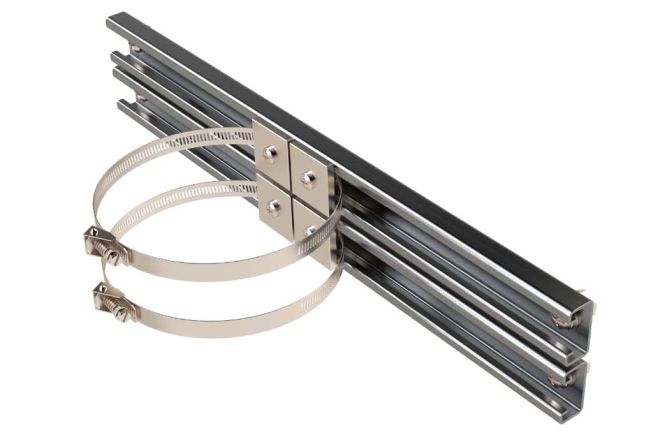

PK-200 Pole Mount Kit
Product Overview
The PK-200 pole mounting kit is designed to be mounted along the width of the SB-49, SA-49, SB-52, SA-52 and along the length of the SB-35, SA-35, SB-36, SA-36, SB-37, SA-37, SB-43, SA-43 enclosures. It comes complete with high-quality adjustable stainless steel bands and the needed assembly hardware, for mounting on pole diameters ranging from 2" to 12" in outdoor applications.
Specifications for
PK-200
Dimensions
| External Dimensions (in) Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 20.00 x 0.81 x 1.63 in |
| External Dimensions (mm) | 508 x 21 x 41 mm |
| Weight | 4.40 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Strut Channel | Steel |
| Hose Clamp | Stainless steel |
Application
| Application | Outdoor use |
General
| Series | |
| Color | Metallic |
| Country of Origin |  United States |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | 2 pc strut channel, 2 pc hose clamp, and hardware |
Downloads
Models & Drawings
| 3D Model | PK-200 STEP |
| 2D Drawing PDF | PK-200 PDF |
Guides
| Pole Mount Cross Reference Guide | Pole Mount Guide |
| Pole Mount Assembly Guide | Pole Mount Assembly Instructions |
