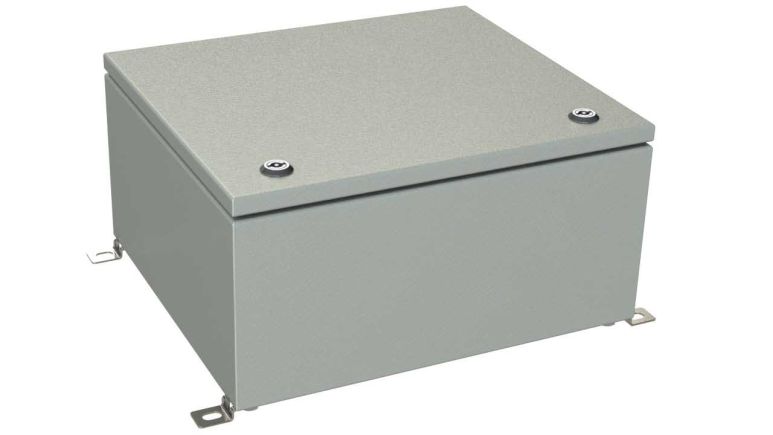

SB-43 SB Series NEMA Steel Enclosures

15.75 x 13.98 x 7.87 in. / 400.05 x 355.09 x 199.90 mm. / 19.80 lbs

  • 16 gauge steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12 (File No. E194432)
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Hinged door with keyed quarter turn latch
  • Gray powder coated finish
  • Bonding studs for grounding are provided on base and door
  • Internal panel, external mounting brackets, and hardware included
  • Paint touch up kit available: SB-90 paint

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Gray Powder Coat
    SB-43-02 Steel Yes Yes
