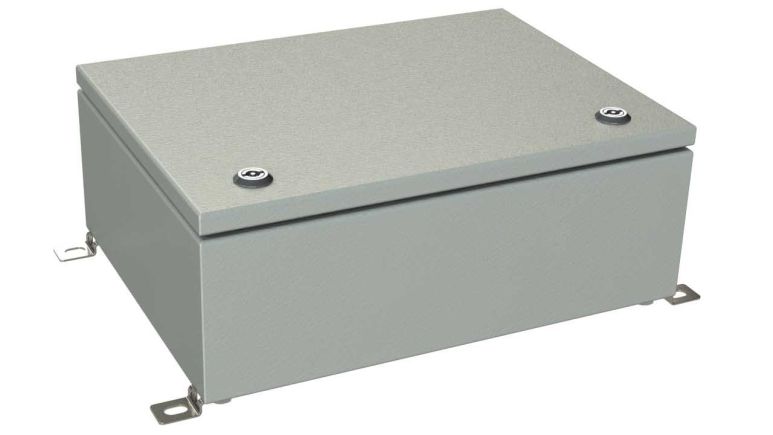

SB-35 SB Series NEMA Steel Enclosures

15.75 x 11.81 x 5.91 in. / 400.05 x 299.97 x 150.11 mm. / 15.00 lbs

  • 16 gauge steel enclosure with gasket
  • UL Listed to UL508A Type 1, 2, 4, 4X, & 12 (File No. E194432)
  • Designed to meet IP65 & IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
  • Hinged door with keyed quarter turn latch
  • Gray powder coated finish
  • Bonding studs for grounding are provided on base and door
  • Internal panel, external mounting brackets, and hardware included
  • Paint touch up kit available: SB-90 paint kit

3D Models

2D Drawings

Material Specifications

      WATERPROOF STANDARD FINISH
    Part Number Material Gasket Gray Powder Coat
    SB-35-02 Steel Yes Yes

    Options & Pricing
    Category
    Finish
    Material
    Application
    NEMA Rating
    IP Rating

    The combinations of options selected is invalid. Please review the last selected option before continuing.

    QuantityPrice
    1 to 4 $86.80
    5 to 9$72.04
    10 to 24$67.00
    25 to 49$57.62
    50+$56.47
