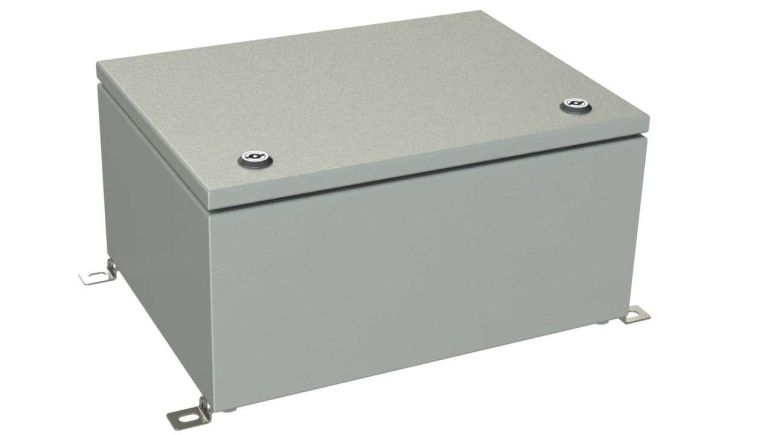

SB-36 NEMA Steel Enclosure

Medium-large sized steel NEMA enclosure with keyed quarter turn latch

Part
SB-36-02
External Dimensions 15.75 x 11.81 x 7.87 in
In stock
Color Gray
Qty Price / Unit
1 - 4 $134.73
5 - 9 $125.29
10 - 24 $109.00
25 - 49 $95.93
50 - 99 $94.01
More
Part
SB-36-02
Increase Down Increase Up
Product Overview
The SB-36 gasketed enclosure is crafted from 16 gauge steel that is powder coated with a gray finish to provide corrosion resistance. Rated up to NEMA 4X, the enclosure meets the IP65/IP66 specifications based on the NEMA/UL type rating conversion. The hinged door features a keyed quarter turn latch for added security, while bonding studs on the door and base ensure effective grounding. The enclosure comes complete with an internal panel, external mounting brackets, and hardware, providing a comprehensive solution for various industrial applications.
Specifications for
SB-36-02
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
15.75 x 11.81 x 7.87 in
400 x 300 x 200 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
15.63 x 11.69 x 7.76 in
397 x 297 x 197 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.06 in
Weight 17.78 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Steel Gauge 16
Base Carbon steel
Cover Carbon steel
Gasket Formed-in-place polyurethane
Application
Application Outdoor use
Waterproof Yes
General
Series
Color Gray
Country of Origin China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Gasketed enclosure, internal panel, external mounting feet, and hardware
External Mounting Style Surface mounting kit (included)
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (included)
Ratings
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
IP65, IP66

Downloads

Models & Drawings
3D Model SB-36 STEP
2D Drawing DWG SB-36 DWG
2D Drawing PDF SB-36 PDF
Other Files SB-36 Pole Mount Kit Assembly

Accessory Guide

Optional Accessories
Pole Mounting Kit (Installed Along Width) PK-125
Pole Mounting Kit (Installed Along Length) PK-200
Cable Management & Venting Accessories Cable Glands & Vents
Spare Parts
Spare Key for Latch SB-KEY-01

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
15.75 x 11.81 x 7.87 in
China
2-16 weeks
Gray
Steel
Outdoor use
1, 2, 4, 4X, 12
IP65, IP66
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (included)
  • Hinged Cover
  • Degree of inherent EMI/RFI protection
  • Bonding studs for grounding on door and base
  • Keyed quarter turn latch on hinged door
  • Pole mount kit available (sold separately)
15.75 x 11.81 x 7.87 in
China
2-16 weeks
Natural
Stainless Steel
Outdoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (included)
  • Hinged Cover
  • Degree of inherent EMI/RFI protection
  • Bonding studs for grounding on door and base
  • Keyed quarter turn latch on hinged door
  • Pole mount kit available (sold separately)
15.75 x 13.98 x 7.87 in
China
2-16 weeks
Gray
Steel
Outdoor use
1, 2, 4, 4X, 12
IP65, IP66
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (included)
  • Hinged Cover
  • Degree of inherent EMI/RFI protection
  • Bonding studs for grounding on door and base
  • Keyed quarter turn latch on hinged door
  • Pole mount kit available (sold separately)
15.75 x 11.81 x 5.91 in
China
2-16 weeks
Gray
Steel
Outdoor use
1, 2, 4, 4X, 12
IP65, IP66
  • Surface mounting kit (included)
  • PCB mounting bosses in base
  • Internal mounting panel (included)
  • Hinged Cover
  • Degree of inherent EMI/RFI protection
  • Bonding studs for grounding on door and base
  • Keyed quarter turn latch on hinged door
  • Pole mount kit available (sold separately)
