ZQ-100802 Waterproof Junction Box

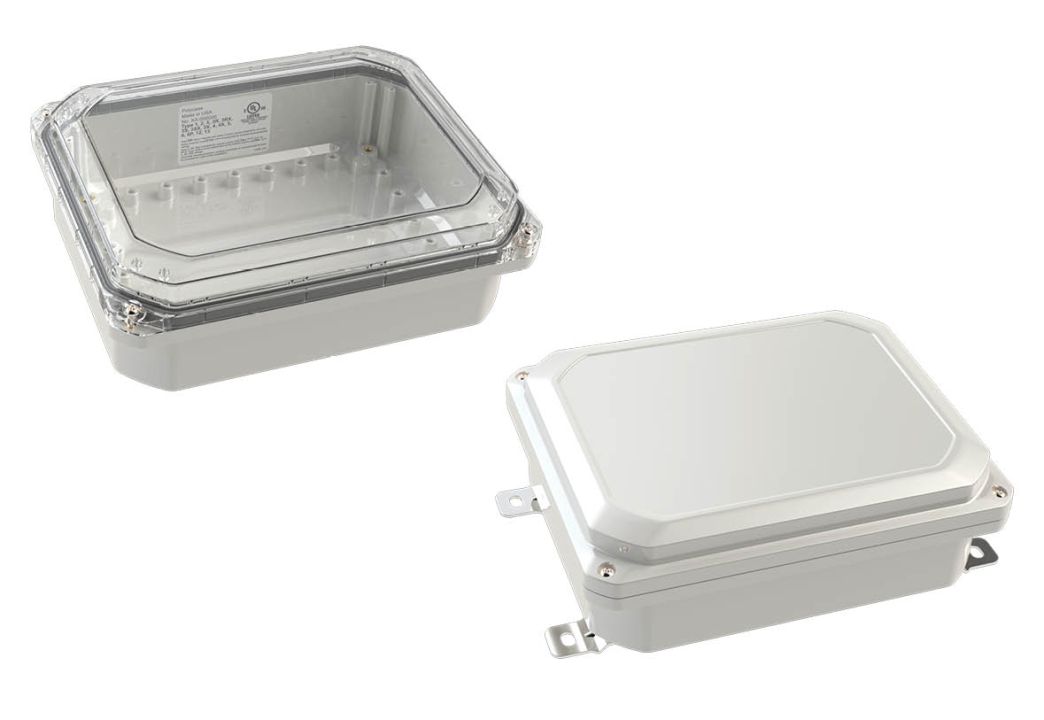

Low-profile electrical housing, available with a clear or gray cover

Part
ZQ-100802
External Dimensions 10.40 x 8.40 x 3.72 in
In stock
Color
Unit Price $56.55
Part
ZQ-100802
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview

The ZQ-100802 low-profile housing is constructed from a gray polycarbonate base with the option of a clear, or gray polycarbonate cover. Designed for versatility, the enclosure provides two different cover assembly styles: a screw close option, or screw close with tamper-resistant screws for enhanced security. Regardless of which cover assembly you choose, a continuous gasket can be found in the cover, accompanied by a thick and tall rib that ensures a watertight seal without any parting line, reducing sharp edges that may compromise the gasket. Select from 4 different external mounting styles: a plastic multi-directional foot kit, plastic mounting flanges, a stainless steel foot kit, or no external mounting for when you have your own mounting solution. Secure your internal components effortlessly by utilizing the mounting bosses located in both the base and cover, offering flexibility precisely where you need it. Ideal for outdoor IoT applications, the housing is rated up to NEMA 6/6P and IP67/IP68, providing superior protection in the harshest of indoor and outdoor environments.

Specifications for
ZQ-100802
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details.
DIN Rail Length (mm)
Weight
Screw Size
Fan Size
Fits Hole Size
Mounting Thread
Cable Diameter (in)
Clearance Hole Diameter (in.)
Max Wall Thickness Hover me Max wall thickness based on full thread engagement into the nut supplied.
Metric Knockouts
2d Drawing PDF
Material Details
Download Material Specs
Product Material
Base
Cover
Panel
End Panel
End Cap
Latch
Gasket
Mounting Flange
Mounting Feet
Body
Nut
Din Clip
DIN Rail
Washer
Temp. Range Impact / Vibration
Temp. Range Static
Strut Channel
Hose Clamp
Button Keypad
Battery Door
Assembly Screws
Application
Application
UV Resistant
Waterproof
EMI/RFI Attenuation
General
Series
Color
Country of Origin
Manufacturer
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Screw Type
Screw Use
Returnable
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery.
Cover Assembly
Cover Style
Base Style
Screw Torque
Lock Nut Torque
Sealing Nut Torque
External Mounting Style
Internal Mounting Option
Number of Buttons
Number of Prongs
Anchoring Screw Tab
Battery Compartment
Receptacle Holes
Ratings
UL & cUL File Number
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
IP Equivalent Hover me Polycase IP Equivalents are based on the NEMA 250 to IEC 60529 conversion table published by NEMA.org.
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
Flame Rating
Impact Rating
Insulation Voltage
Protection Class
Inventory for
ZQ-100802
Updated: 07/20/24 01:01 AM ET
Number of Units in Stock
Ready To Ship in 2-3 Days
Ready To Ship in One Week
Ready To Ship in 2 Weeks
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse.
Returnable

Downloads

Models & Drawings
3D Model ZQ-100802 STEP
2D Drawing PDF ZQ-100802 PDF
2D Drawing DWG ZQ-100802 DWG
Other Files ZQ-100802 Printing Template
Material Specs
Enclosure Material Specs Polycarbonate Material Spec
Certifications & Testing
ZH & ZQ Series UL Certificate UL Certificate & Testing Results

Accessory Guide

Optional Accessories
Internal Mounting Panels ZX-1008K
DIN Rail Kit (Installed Along Width) DR-54
DIN Rail Kit (Installed Along Length) DR-56
Pole Mount Kit (Installed Along Width) PK-087
Pole Mount Kit (Installed Along Length) PK-126
Cable Management & Venting Accessories Cable Glands & Vents
Spare Parts
Standard Cover Screws SCREWS-046
Tamper-Resistant Cover Screws SCREWS-047-25
Foot or Flange Screws SCREWS-046
8" Flange Kit ZH-08FK-01
Mounting Feet ZH-01FK-01
Stainless Steel Latch ZH-01L
Mounting Boss Screws
PCB Screws for Corner Bosses with Brass Inserts SCREWS-011-100
PCB Screws for Plastic Bosses SCREWS-013-100
PCB Screws for Top of Base & Cover Bosses SCREWS-MBR-100

Part Numbers

Color Cover Assembly External Mounting Style
Part # Gray Gray with Clear Cover Screw close Screw close - tamper-resistant Plastic flange Plastic feet None Stainless steel feet
ZQ-100802-14
ZQ-100802-13
ZQ-100802-24
ZQ-100802-23
ZQ-100802-18
ZQ-100802-17
ZQ-100802-28
ZQ-100802-27
ZQ-100802-91
ZQ-100802-93
ZQ-100802-94
ZQ-100802-95
ZQ-100802-41
ZQ-100802-43
ZQ-100802-44
ZQ-100802-45

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
10.40 x 8.40 x 3.72 in
United States
1-3 weeks
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Plastic flange
  • Plastic feet
  • None
  • Stainless steel feet
  • PCB mounting bosses in cover and base
  • 4 different internal mounting panel kits (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Tamper-resistant screws optional
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
10.40 x 8.40 x 3.72 in
United States
1-3 weeks
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 12, 13, 6, 6P
IP65, IP66, IP67, IP68
  • Plastic flange
  • Plastic feet
  • None
  • Stainless steel feet
  • PCB mounting bosses in cover and base
  • 4 different internal mounting panel kits (sold separately)
  • Hinged Cover
  • Cover screws into brass inserts for on/off convenience
  • Captive stainless-steel screws
  • Area for padlock
  • Machine screws for on/off convenience
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Tamper-resistant screws optional
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
10.40 x 8.40 x 5.22 in
United States
1-3 weeks
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Plastic flange
  • Plastic feet
  • None
  • Stainless steel feet
  • PCB mounting bosses in cover and base
  • 4 different internal mounting panel kits (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
  • Pole mount kit available (sold separately)
  • Centrally located bosses for DIN rail mounting (DIN rail mounting kit available)
  • Tamper-resistant screws optional
  • Additional mounting bosses for non-centered DIN rail mounting (DIN rail mounting kit available)
11.81 x 9.05 x 3.40 in
Taiwan, Province of China
2-16 weeks
Gray
Polycarbonate
Outdoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
