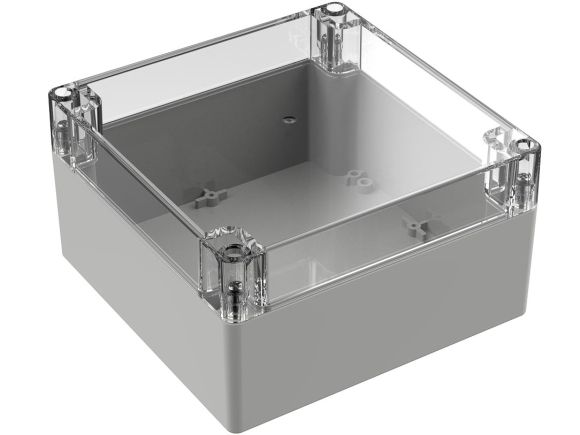

WC-39 WC Series Outdoor Enclosures with Clear Covers

6.30 x 6.30 x 3.52 in. / 160.02 x 160.02 x 89.41 mm. / 0.85 lbs

The WC-39 offers

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of conditions
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Internal mounting panel WX-38 available as an accessory

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-39*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
