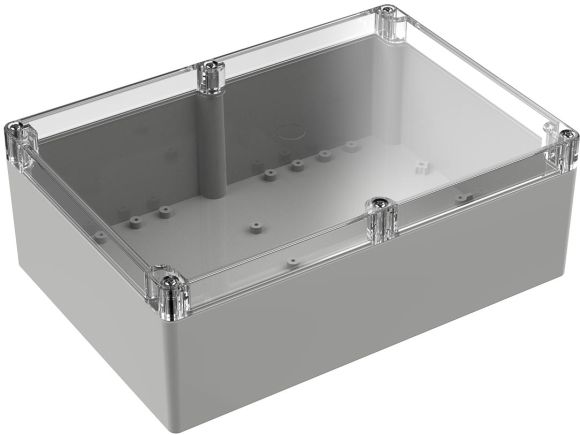

WC-35 WC Series NEMA 4X Polycarbonate Enclosures

10.43 x 7.28 x 3.74 in. / 264.92 x 184.91 x 95.00 mm. / 1.75 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with both PCB mounting bosses with threaded brass inserts and shorter, plastic bosses
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 6 enclosure screws
  • Internal mounting panel WX-34 available as an accessory

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-35*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses

The combinations of options selected is invalid. Please review the last selected option before continuing.

QuantityPrice
1 to 9$40.31
10 to 49$33.75
50 to 99$28.23
100 to 249$26.50
250 to 499$24.98
500 to 999$0.00
1000+$0.00
