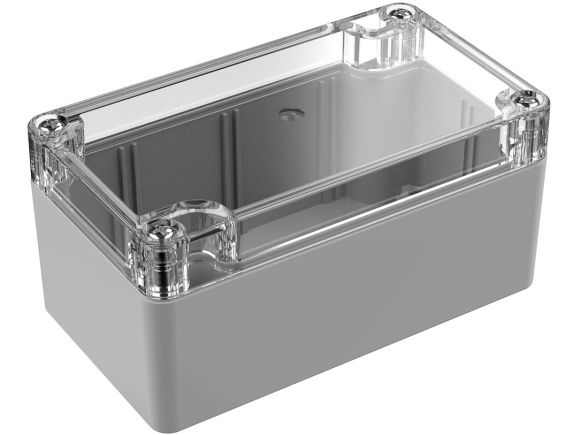

WC-22 WC Series NEMA 4X Polycarbonate Enclosures

4.53 x 2.56 x 2.17 in. / 115.06 x 65.02 x 55.12 mm. / 0.31 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket
  • UL Listed to UL508-4x specifications (File E194432)
  • PCB mounting bosses with brass inserts are standard
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Optional internal mounting panel WX-14 available

3D Models

2D Drawings

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-22*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses

The combinations of options selected is invalid. Please review the last selected option before continuing.

Quantity Price
1 to 9 $12.58
10 to 49 $10.48
50 to 99 $9.43
100 to 249 $8.38
250 to 499 $7.97
500 to 999 $0.00
1000+ $0.00
