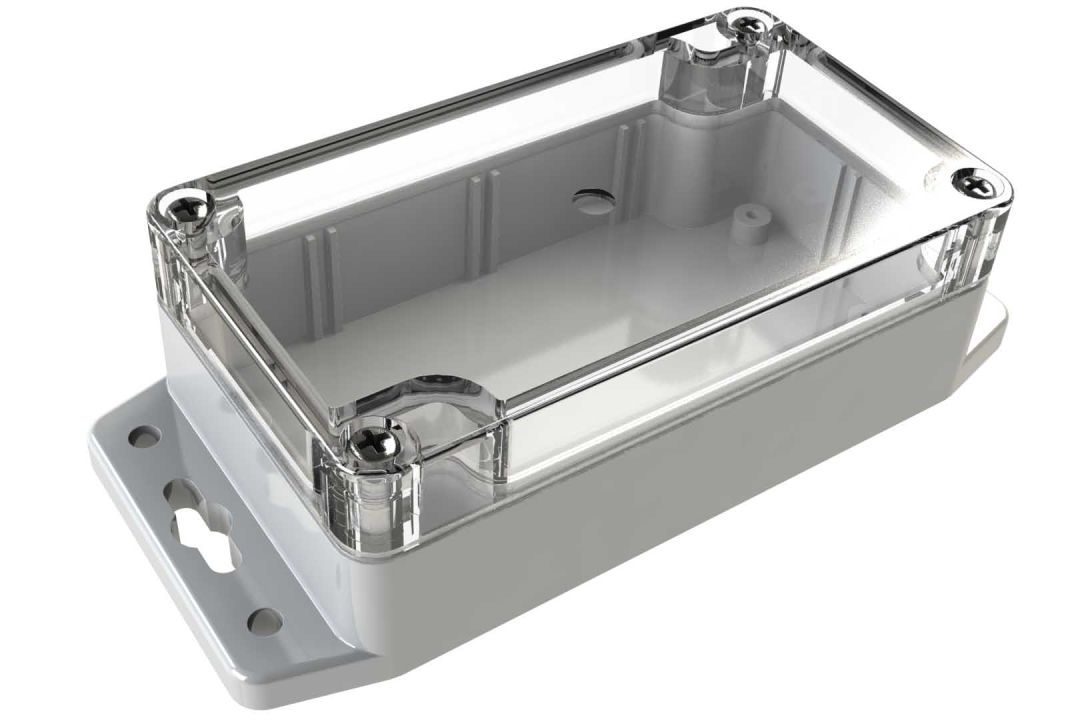

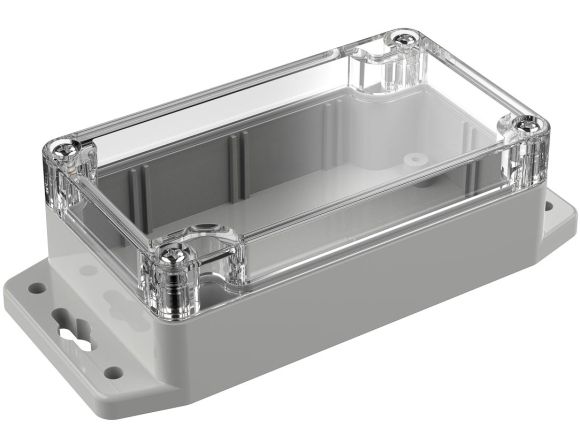

WC-21F WC Series Outdoor Enclosures with Clear Covers

4.53 x 2.56 x 1.57 in. / 115.06 x 65.02 x 39.88 mm. / 0.25 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • UL Listed to UL508-4x specifications (File E194432)
  • Silicone rubber gasket
  • Plastic PCB mounting bosses are standard
  • Durable, impact-resistant UV Stabilized Polycarbonate material
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Optional internal mounting panel WX-14 available





Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Light Gray w/ Clear Cover Gasket
WC-21F*1508 Flame Retardant Polycarbonate UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
PCB Mounting Bosses
