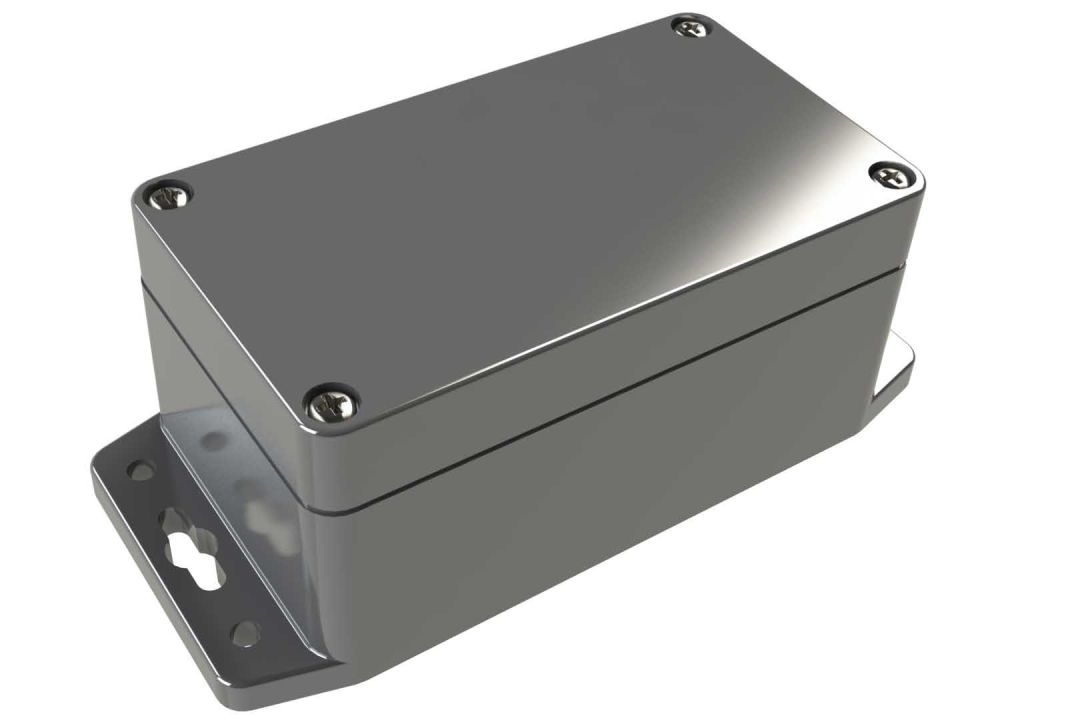

WA-22F WA Series ABS Indoor NEMA Enclosures

4.53 x 2.56 x 2.17 in. / 115.06 x 65.02 x 55.12 mm. / 0.31 lbs

  • Designed to IP65 of IEC 529 and NEMA 1, 2, 4, 4x, 12 and 13 specifications
  • Silicone rubber gasket for protection from adverse indoor conditions
  • UL Listed to UL508-4x specifications (File E194432)
  • Comes standard with plastic PCB mounting bosses
  • Molded in dark gray flame retardant ABS plastic
  • Assembly includes base, gasket, cover, and 4 enclosure screws
  • Internal mounting panel WX-14 available as an accessory

Material Specifications

   STANDARD COLORWATERPROOF
Part Number Material Flame Rating Dark Gray Gasket
WA-22F*16 Flame Retardant ABS UL94-HB Yes Yes
Options & Pricing
Application
Category
Color
IP Rating
Material
NEMA Rating
Series
Max PCB
Flanges
