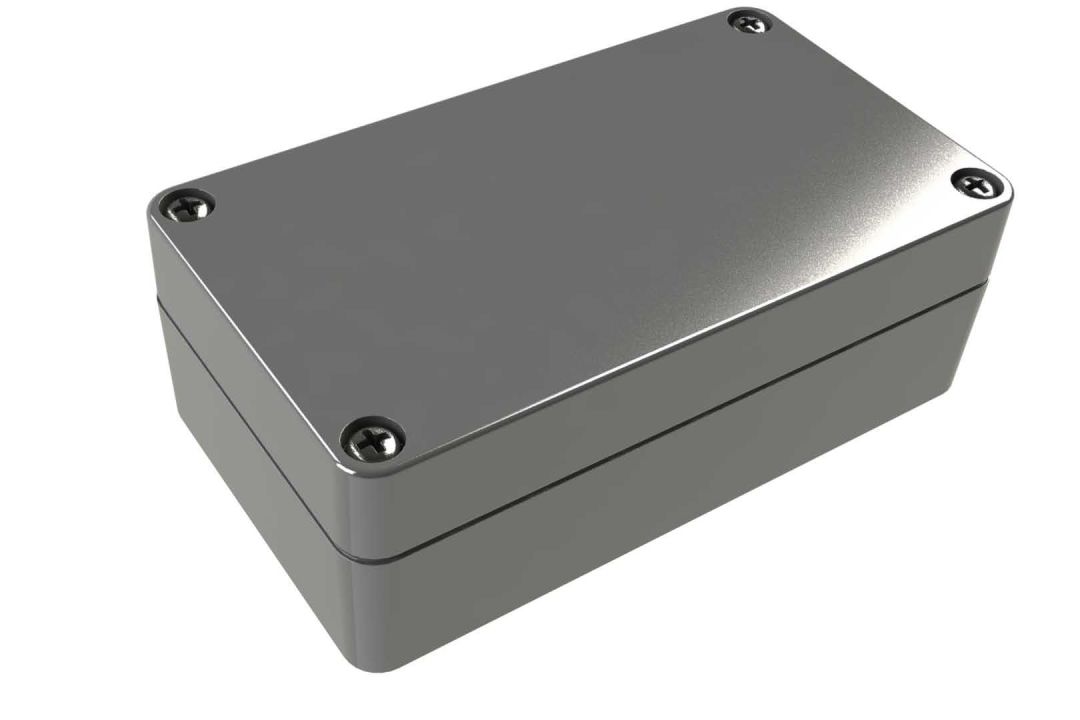

WA-21 ABS Indoor NEMA Enclosure

Shallow watertight enclosure crafted from ABS plastic

Part
WA-21*16
External Dimensions 4.53 x 2.56 x 1.57 in
In stock
Color Gray
QtyPrice / Unit
1 - 9 $10.05
10 - 49 $8.65
50 - 99 $7.70
100 - 249 $6.93
250 - 499 $6.58
More
Part
WA-21*16
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The WA-21 shallow electronic enclosure is constructed from dark grey flame-retardant ABS plastic with a silicone rubber gasket for protection against adverse indoor conditions. Secure your PCB easily utilizing the 4 mounting bosses located in the base of the enclosure, or opt for the mounting panel (sold separately).
Specifications for
WA-21*16
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
4.53 x 2.56 x 1.57 in
115 x 65 x 40 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
4.26 x 2.30 x 1.38 in
108 x 58 x 35 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.118 in
Weight 0.23 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Gasket Silicone
Assembly Screws Stainless steel
Application
Application Indoor use
UV Resistant No
Waterproof Yes
General
Series
Color Gray
Country of Origin Taiwan, Province of China
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, gasketed cover, and 4 screws
Screw Torque 8 in lbs
External Mounting Style Optional surface mounting kit (sold separately)
Internal Mounting Option
PCB mounting bosses in base, Internal mounting panel (sold separately)
Ratings
UL & cUL File Number E194432
NEMA Rating Hover me NEMA Ratings are based on independent lab testing by UL and/or information available from the manufacturer.
1, 2, 4, 4X, 12, 13
IP Rating Hover me IP Ratings are based on independent lab testing and/or information available from the manufacturer.
IP65
Flame Rating UL94 HB

Downloads

Models & Drawings
3D Model WA-21 STEP
2D Drawing DWG WA-21 DWG
2D Drawing PDF WA-21 PDF
Other Files WA-21 Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
Internal Mounting Panel WX-14
Adhesive PCB Mounting Standoffs MB-01-20
Cable Management & Venting Accessories Cable Glands & Vents
Surface Mounting Kit WA-90
Mounting Boss Screws
PCB Mounting Boss Screws (bosses with brass inserts) SCREWS-M3-6-100
PCB Mounting Boss Screws (bosses without brass inserts) SCREWS-MBR-100

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
4.53 x 2.56 x 1.57 in
Taiwan, Province of China
2-16 weeks
Gray
ABS
Indoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Optional surface mounting kit (sold separately)
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
4.53 x 2.56 x 1.57 in
Taiwan, Province of China
2-16 weeks
Gray
ABS
Indoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
4.50 x 2.63 x 2.05 in
United States
Up to 4 weeks
Gray or Gray with Clear Cover
Polycarbonate
Outdoor use
1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Machine screws for on/off convenience
4.50 x 3.38 x 1.85 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • PCB mounting bosses in base
  • Two cover styles to choose from
  • Thread forming cover screws
