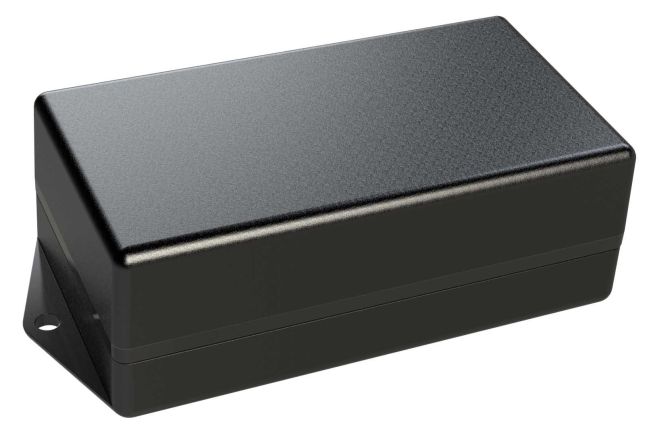

ID-2409F Plastic Electronics Enclosure
ABS potting enclosure with surface mounting flanges
Product Overview
The ID-2409F is crafted from black flame retardant ABS plastic, featuring 4 PCB mounting bosses in the base, and molded on flanges for easy surface mounting. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for IoT electronics applications.
Specifications for
ID-2409FMB
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. |
4.0 x 2.1 x 1.4 in
102 x 56 x 38 mm
|
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. |
3.8 x 2.0 x 1.3 in
99 x 51 x 34 mm
|
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 0.12 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Indoor/Outdoor Use | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |
United States
|
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | Molded-on flange |
| Internal Mounting Option |
PCB mounting bosses in base
|
Inventory for
ID-2409FMB
In stock
Additional Stock
| Number of Units in Stock Hover me Stock available to ship within 1-2 business days | 1622 |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Polycase inventory is subject to change. Most products will ship within 1 business day, when the item is in stock and the order is placed before 3PM ET Monday-Friday. In the unlikely event your order is delayed, we will contact you via email.
Downloads
Models & Drawings
| 3D Model | ID-2409F STEP |
| 2D Drawing DWG | ID-2409F DWG |
| 2D Drawing PDF | ID-2409F PDF |
| Other Files | ID-2409F Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Certifications & Testing
| USMCA Certificate of Origin | USMCA Polycase Series |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
