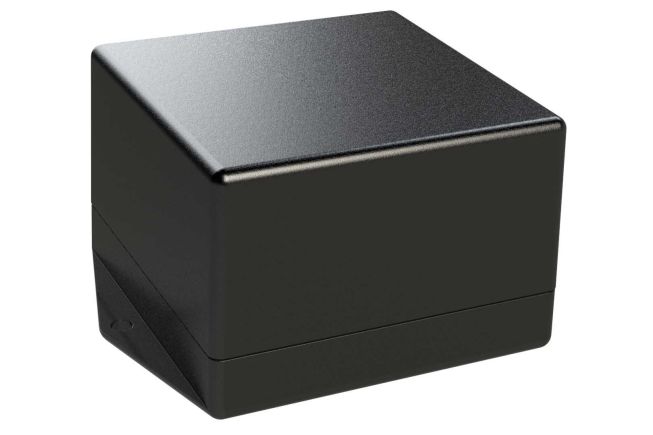

ID-3315F Plastic Electronics Enclosure

ABS plastic enclosure with flanges and extra-deep cover

Part
ID-3315FMB
External Dimensions 3.00 x 3.00 x 2.09 in
In stock
Color Black
QtyPrice / Unit
1 - 9 $5.55
10 - 49 $4.59
50 - 99 $3.95
100 - 249 $3.29
250 - 499 $3.14
More
Part
ID-3315FMB
Increase Down Increase Up
Customize It Hover me Save time and money by customizing this product with CNC machining and digital printing services.
Product Overview
The ID-3315F is crafted from black flame retardant ABS plastic, featuring 4 PCB mounting bosses in the base, and molded on flanges for easy surface mounting. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for desktop electronics applications.
Specifications for
ID-3315FMB
Dimensions
Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details.
3.00 x 3.00 x 2.09 in
76 x 76 x 53 mm
Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application.
2.93 x 2.93 x 1.95 in
74 x 74 x 50 mm
Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. 0.08 in
Weight 0.15 lbs
2d Drawing PDF Download 2D Drawing PDF
Material Details
Download Material Specs Download Material Specs
Base ABS
Cover ABS
Application
Application Indoor use
UV Resistant No
Waterproof No
General
Series
Color Black
Country of Origin United States United States
Manufacturer Polycase
Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. 1 week
Assembly Details
Assembly Includes Hover me Most components require assembly upon delivery. Base, cover, and 4 screws
Screw Torque 4 in lbs
External Mounting Style Molded-on flange
Internal Mounting Option
PCB mounting bosses in base
Ratings
Flame Rating UL94 V-0

Downloads

Models & Drawings
3D Model ID-3315F STEP
2D Drawing DWG ID-3315F DWG
2D Drawing PDF ID-3315F PDF
Other Files ID-3315F Printing Template
Material Specs
Material Specs ABS Plastic Specs

Accessory Guide

Optional Accessories
PCB Mounting Boss Screws SCREWS-MBR-100
Adhesive PCB Mounting Standoffs MB-01-20
Spare Parts
Extra Cover Screws SCREWS-HL1-BR

Compare with Similar Items

Customer Rating
External Dimensions
Country of Origin
Out-Of-Stock Lead Time
Color
Material
Application
NEMA Ratings
IP Ratings
Mounting Style
Internal Mounting Option
Features
3.00 x 3.00 x 2.09 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Thread forming cover screws
3.00 x 3.00 x 2.09 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • None
  • PCB mounting bosses in base
  • Cover screws hidden when mounted
  • Shallow base and deep cover
  • Thread forming cover screws
2.28 x 2.52 x 1.38 in
Taiwan, Province of China
2-16 weeks
Gray
ABS
Indoor use
1, 2, 4, 4X, 12, 13
IP65, IP66
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Cover screws into brass inserts for on/off convenience
  • Centrally located bosses for DIN rail mounting
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
2.52 x 2.28 x 1.38 in
Taiwan, Province of China
2-16 weeks
Natural or Black
Aluminum
Outdoor use
4, 4X, 6, 6P, 12, 13
IP65, IP66, IP67, IP68
  • Molded-on flange
  • PCB mounting bosses in base
  • Internal mounting panel (sold separately)
  • Degree of inherent EMI/RFI protection
  • Natural finish or black powder coat
  • Captive stainless-steel screws
  • Machine screws for on/off convenience
2.00 x 2.00 x 1.50 in
United States
1 week
Black
ABS
Indoor use
N/A
N/A
  • Molded-on flange
  • No PCB mounting bosses
  • Optional glue on cover (sold separately)
2.00 x 2.00 x 1.25 in
Taiwan, Province of China
2-18 weeks
Natural
Aluminum
Indoor use
N/A
N/A
  • None
  • No PCB mounting bosses
  • Degree of inherent EMI/RFI protection
  • Thread forming cover screws
