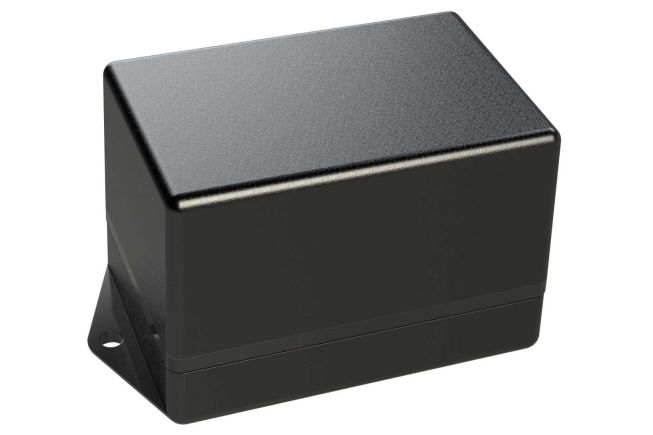

ID-2315F Plastic Electronics Enclosure
Small electronics housing for potting applications - with mounting flanges
Product Overview
The ID-2315F is crafted from black flame retardant ABS plastic, featuring 4 PCB mounting bosses in the base, and molded on flanges for easy surface mounting. The extra-deep cover fastens from the base to keep screws hidden while providing ample interior space for indoor electronics applications.
Specifications for
ID-2315FMB
Dimensions
| Approximate External Dimensions Hover me Nominal external dimensions (LxWxH). Features (flanges, feet, bosses, etc.) may increase the overall dimensions. Refer to drawings/models for exact dimensional details. | 3.00 x 2.00 x 2.09 in 76 x 51 x 53 mm |
| Approximate Internal Dimensions Hover me Dimensions listed are approximate. Please refer to the drawings/models below to ensure a fit for your application. | 2.85 x 1.86 x 1.94 in 72 x 47 x 49 mm |
| Wall Thickness Hover me Nominal wall thickness. Wall thickness may vary throughout the enclosure. Refer to drawings/models for exact details. | 0.09 in |
| Weight | 0.11 lbs |
| 2d Drawing PDF | Download 2D Drawing PDF |
Material Details
| Download Material Specs | Download Material Specs |
| Base | ABS |
| Cover | ABS |
Application
| Application | Indoor use |
| UV Resistant | No |
| Waterproof | No |
General
| Series | |
| Color | Black |
| Country of Origin |  United States |
| Manufacturer | Polycase |
| Out-Of-Stock Lead Time Hover me We strive to keep adequate stock on hand for all parts. If we do happen to be out of stock, this is the anticipated lead time if the part is not in stock in our Avon warehouse. | 1 week |
Assembly Details
| Assembly Includes Hover me Most components require assembly upon delivery. | Base, cover, and 4 screws |
| Screw Torque | 4 in lbs |
| External Mounting Style | Molded-on flange |
| Internal Mounting Option | PCB mounting bosses in base |
Downloads
Models & Drawings
| 3D Model | ID-2315F STEP |
| 2D Drawing DWG | ID-2315F DWG |
| 2D Drawing PDF | ID-2315F PDF |
| Other Files | ID-2315F Printing Template |
Material Specs
| Material Specs | ABS Plastic Specs |
Accessory Guide
Optional Accessories
| PCB Mounting Boss Screws | SCREWS-MBR-100 |
| Adhesive PCB Mounting Standoffs | MB-01-20 |
Spare Parts
| Extra Cover Screws | SCREWS-HL1-BR |
